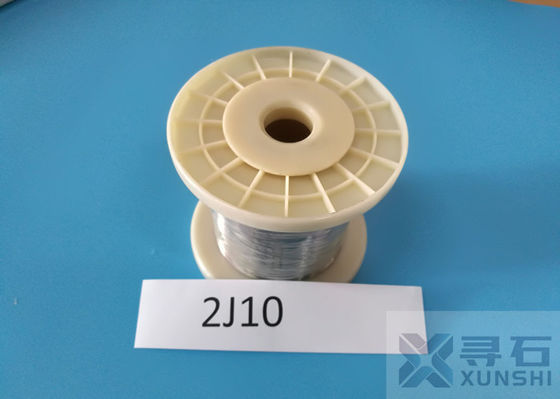

0.50mm Vicalloy Wire FeCoV

Place of Origin China
Brand Name XUNSHI
Certification ISO9001:2015
Model Number Vicalloy
Minimum Order Quantity 10 kg
Price Negotiable
Packaging Details Carton
Delivery Time 45 days
Payment Terms T/T
Supply Ability 10000 meters per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Diameter 0.50mm Application Flowmeters, Tachometers
Delivery Form Coiled Or In Reel
High Light

Magnetic Sensitive Sensor Alloy Wire

,

Zero Power Consumption Magnetic Sensitive Wire

,

Permanent Magnet Alloy Sensitive Wire

Leave a Message
Product Description

Introduction

Magnetic Sensitive Wire is a thin wire used in zero power consumption magnetic sensitive sensor, also known as Wiegand Sensor. Zero power consumption magnetic sensitive sensor is composed of a special processed dual-state alloy wire with magnetic sensitive function and induction coil wound around.

When exposed to an alternating external magnetic field, a Magnetic Sensitive Wire will initially retaining its magnetic polarity. However, when the external field reaches a certain threshold, the polarity of the wire segment will abruptly reverse. This polarity switch occurs within a few microseconds and can generate a distinct current pulse in a fine copper coil wrapped around the ferromagnetic core. This pulse is strong enough to activate logic circuits and can be used to energize low power electronic chips. This self-powering capacity of zero power consumption magnetic sensitive sensors helps make them more reliable – and safer – since they can provide signals for alarm systems without external power sources.



Advantages of Zero power consumption magnetic sensitive sensor

No sensor other than Zero power consumption magnetic sensitive sensor combines the advantages below:

  • Output voltage pulse of 3-5V without input and driver microprocessor. It is specially proper for intelligent instruments requires Zero power consumption. For example, sensors powered by battery.
  • In the frequency range of 0 ~ 20kHz, the amplitude and width of the output voltage pulse (about 20 μs) are constant. Ultra low speed ("zero speed") detection could be realized without the change of the relative motion velocity between the sensor and the permanent magnet.
  • The working distance between the sensor and the permanent magnet can reach 15mm, and the output voltage is not less than 3V. When the distance is above 30mm, the output voltage is more than 100mV.
  • Working temperature range: -196℃~+300℃
  • The sensor outputs a pulse signal only when the polarity of the excited magnetic field is jumping. This characteristic makes the Weigand sensor very stable and enhances the anti-interference ability.
  • The amplitude and width of the output pulse are independent of the relative velocity between the sensor and the external magnet and remain constant.

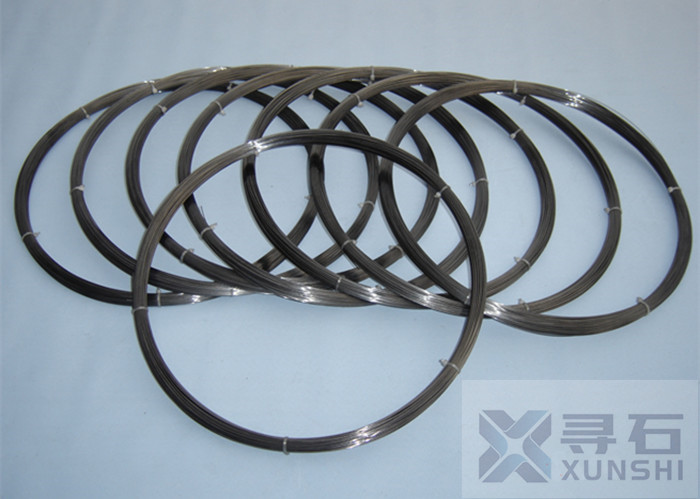

0.50mm Vicalloy Wire FeCoV 0

Character

Parameter Value
Working magnetic field strength(Hμ) 14.4~18.4 kA/m
Working magnetic induction intensity(Bμ) 0.9~1.2T
Specific hysteresis loss(Pμ) ≥3.0x104J/m3
 k value(Kμ) ≥0.58
Density 8.1g/cm3
Linear Expansion coefficient(20-300 °C) 11.310x10-6 °C-1
Resistivity 0.71μΩ·m
Curie Point 860°C
Working temperautre -196℃~+300℃
Diameter 0.25~0.50mm





Size available:

  • Diameter 0.50mm
  • Diameter 0.25mm(in process)



Application

  • Flowmeters
  • Tachometers
  • Proximity Sensors
  • Autonomous Wireless IoT Sensor Units
  • Battery Free Multiturn
  • Low Frequency Wireless Power Transmission
  • Kinetic Energy Harvest (e.g. Mag-drive Pumps)
  •

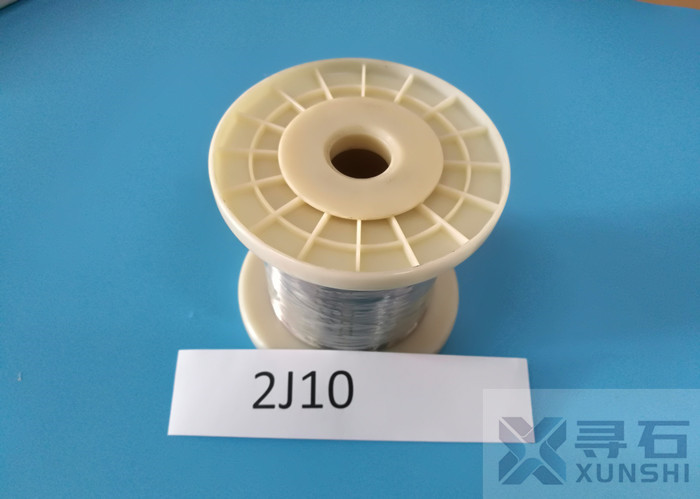

0.50mm Vicalloy Wire FeCoV 1

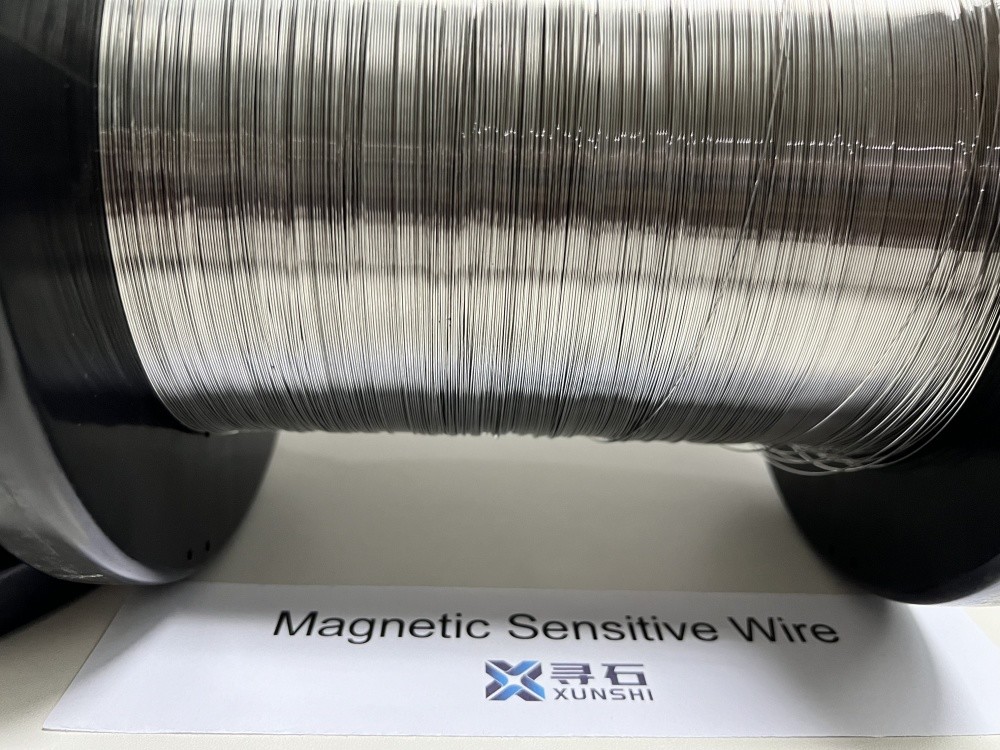

0.50mm Vicalloy Wire FeCoV 2
