Iron-Cobalt Permanent Magnetic Alloy 2J10 Strip, Rod And Wire

Place of Origin China
Brand Name XUNSHI
Certification ISO9001
Model Number 2J10
Minimum Order Quantity 20kg
Price Negotiable
Packaging Details Plywood case
Delivery Time 45-50 days
Payment Terms T/T
Supply Ability 500kg per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Density 8.1g/cm3 Melting Range 1530-1600°C
Cuire Piont 860°C Resistance Rate 0.71μΩ·m
Forms Of Supply Bar, Wire, Strip Thickness Range 0.05~2.0mm
Width 20~200mm Product Name Permanent Magnet Alloy
High Light

cobalt iron alloy

,

magnetic materials

,

Permanent Magnetic Alloy 2J10 Strip

Leave a Message
Product Description

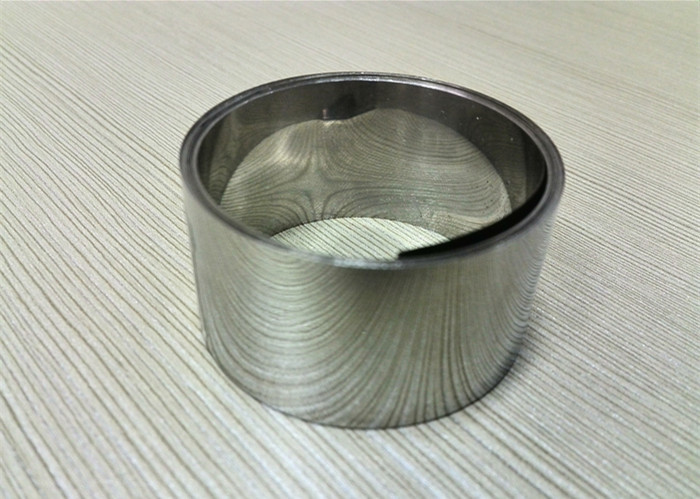

Iron-Cobalt Permanent Magnetic Alloy 2J10 strip, Rod and wire



XUNSHI is a professional supplier of 2J10 permanent magnetic alloy in rods, strips, Wire etc.

2J10 Similar model: Vicalloy I



2J10 can be precipitation hardened. It has good ductility, and could be cold processed by forging, rolling and drawing and cutting. Usually, 2J10 is applied to motor equipment, such as hysteresis motor, hysteresis brake, etc. Fe-Co-V hysteresis alloys have good ductility before tempering. After cold rolling (or drawing) with 90% strain, excellent hysteresis properties and strong magnetic anisotropy can be obtained, i.e. longitudinal magnetic properties are better than transverse ones. Therefore, if the wire can be used as the rotor of hysteresis motor in the manufacturing process, its performance is better, and it has more development prospects.



Chemical composition

Element C P S Si Mn Co V Ni Fe
Weight(%) ≤0.12 ≤0.25 ≤0.02 ≤0.70 ≤0.70 51.0~53.0 9.5~10.5 ≤0.70 Rem



2J10 Magnetic performance

Hμ(kA/m)

(Hμ/Oe)

Bμ/T

(Bμ/Gs)

Pμ(104J/m3) Kμ
14.4~18.4(180~230) 0.9~1.2(9000~12000) 3.0 0.58





Application

2J10 is used to produce high efficiency hysteresis motor rotor and hysteresis brake. 2J10 wire can be used to make weigand wire in weigand sensor.

The corrosion resistance of 2J10 is good and it does not rust in the atmosphere.

2J10 Density:8.1g/cm3



Forms of supply

Strip: thickness: 0.05-1.0mm

Width 5-200mm



Round bar Specification range: Φ5-200mm

Wire Specification range: Φ0.1~6.0mm



We can also supply the other products of 2J10 such as forgings and processed parts according to customer needs.
