3J21 Superelastic Alloy Wire Diameter 0.10-6.0mm Shock Resistance

3J21 Superelastic Alloy Wire Diameter 0.10-6.0mm Shock Resistance

3J21 is a deformation reinforced cobalt-based alloy, with good plastic properties and easy to process in the solid solution state. After high strain rate cold processing and time limit treatment, 3J21 can obtain high mechanical and elastic properties, but after the solid solution treatment, the alloy can no longer be strengthened by time limit treatment.

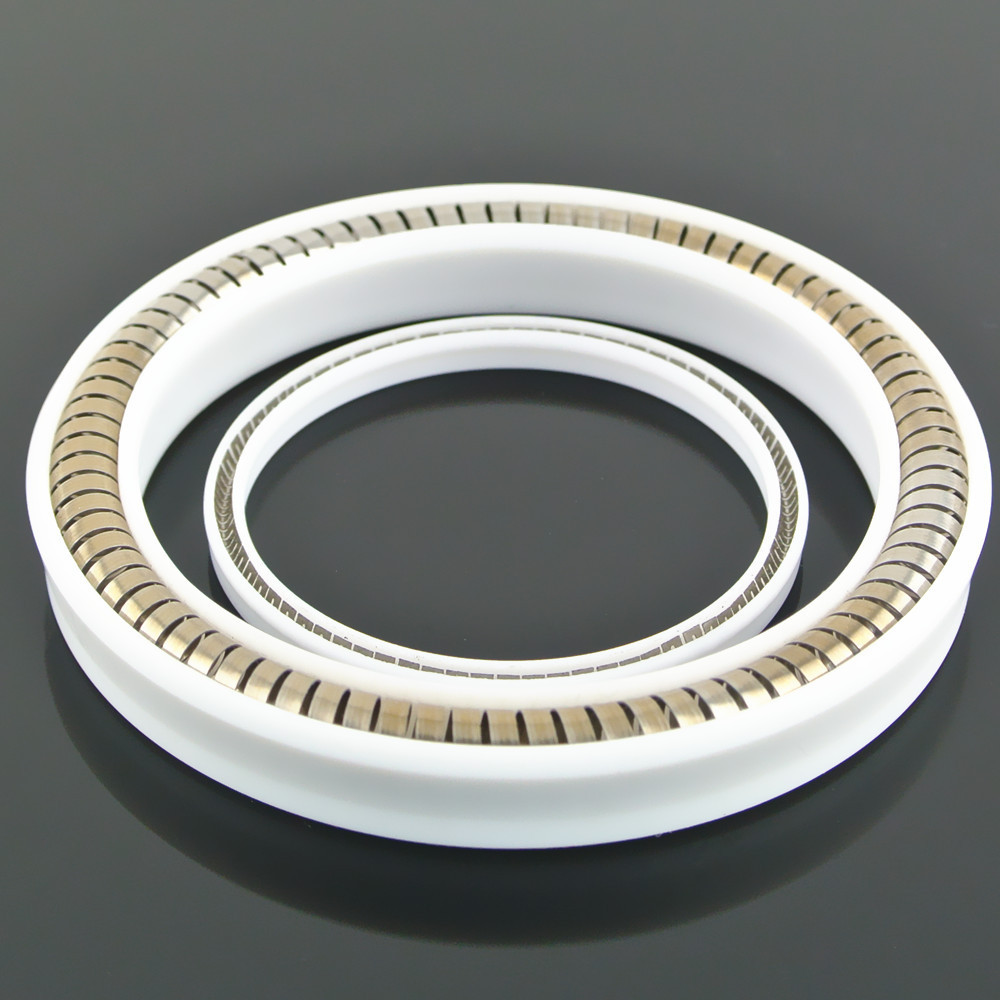

The 3J21 alloy strip materials we supplied have been successfully exported to a seal manufacturer in Italy, replaced the elastic materials previously produced in France.

Density:8.3g/cm³

Chemical composition of 3J21(wt, %)

Characters

• High strength
• High hardness
• High elasticity limit
• High energy storage ratio
• High fatigue strength
• Small elasticity lag and rear effect
• Non magnetic
• Good wear resistance
• Shock resistance
• Excellent Corrosion Resistance
• Working at high and low temperature condition, high temperature up to 400 °C

Application

3J21 is mainly used for elastic element for aviation required wear resistance, corrosion resistance, seismic, no magnetic, thin wire, strip, spring, and film elements below 400℃, but also for making special bearings with highcorrosion resistance and non magnetic, and 3j21 also used for making small shaft, ball, stamping mold and blade tools.

The Equal grades

• R30003
• Phynox(France)
• Elgiloy*
• NAS604PH

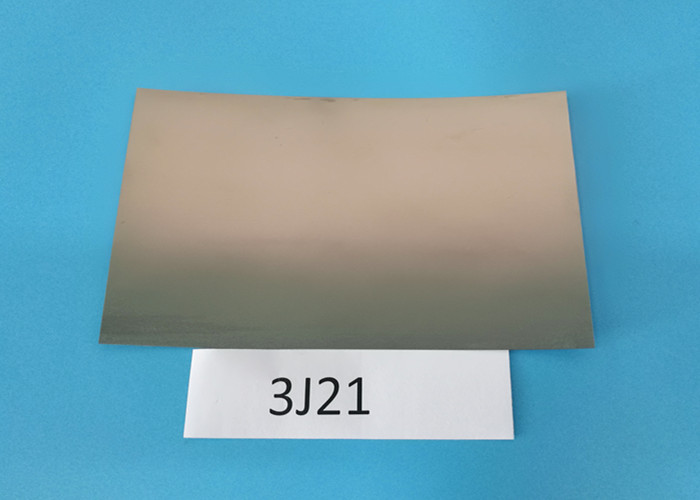

The available forms of 3J21

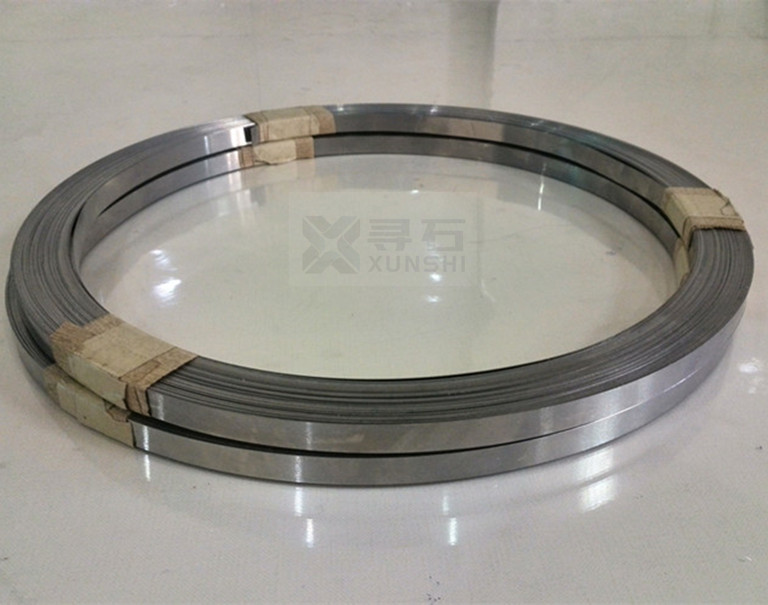

Usually, 3J21 is supplied in cold rolled strip and cold pulled wire form, and also can be provided upon customer request in rods and forgings

Wire: 0.10-6.0mm

Strip: 0.05-2.0mm

Rod diameter 20-100mm

The leading time for wires and rods is 30days.
