R30003 Shock and Corrosion Resistant Superelastic Alloy Co40CrNiMo

R30003 Shock and Corrosion resistant Superelastic Alloy High Hardness

R30003 is a "super-alloy" consisting of 39-41% Cobalt, 19-21% Chromium, 14-16% Nickel, 11.3-20.5% Iron, 6-8% Molybdenum, and 1.5-2.5% Manganese. In China it is called Co40CrNiMo, 3J21-3Jxx is a series of elastic alloys.
It is used to make springs that are corrosion resistant and exhibit high strength, ductility, and good fatigue life. These same properties led to it being used for control cables in the Lockheed SR-71 Blackbird airplane.

Chemical composition

Characters

High strength,high hardness, high elasticity limit, high energy storage ratio, high fatigue strength, small elasticity lag and rear effect, non magnetic, good wear resistance, seismic and shock resistance, excellent corrosion resistance, can work at high temperature 400 °C and also can work normally at low temperature.

Density:8.3g/cm3

Application

• Springs
• Seal components
• Medical devices
• Components for watches
• Aerospace applications
• Petro-chemical applications
• Marine engineering

Forms of supply

• Wire spec:0.10-6.0mm

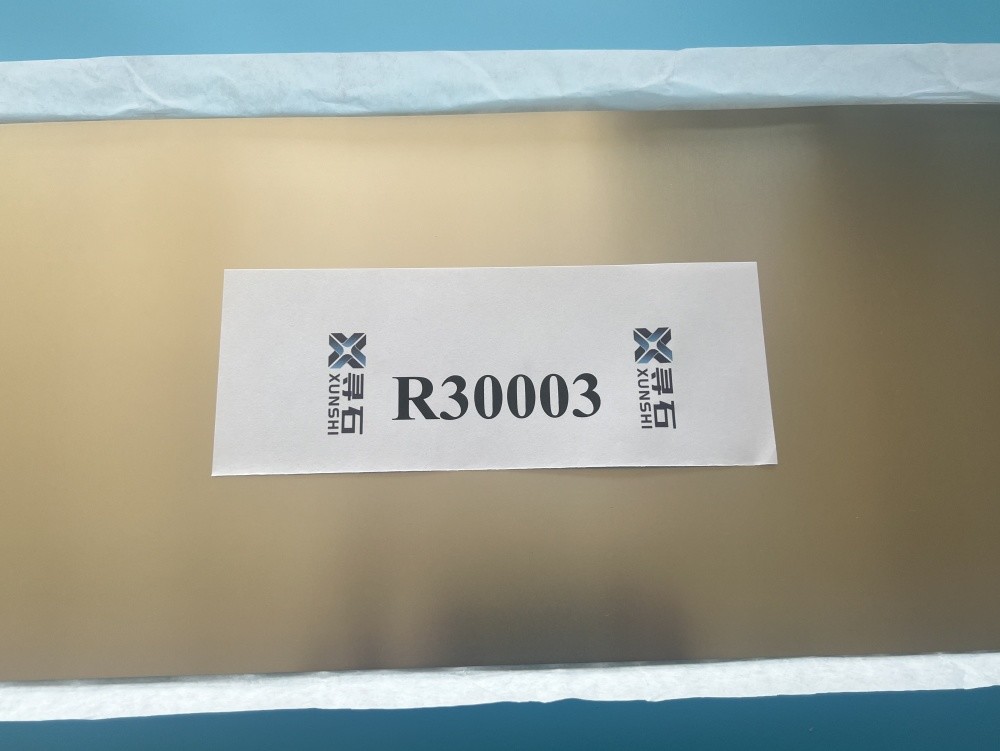

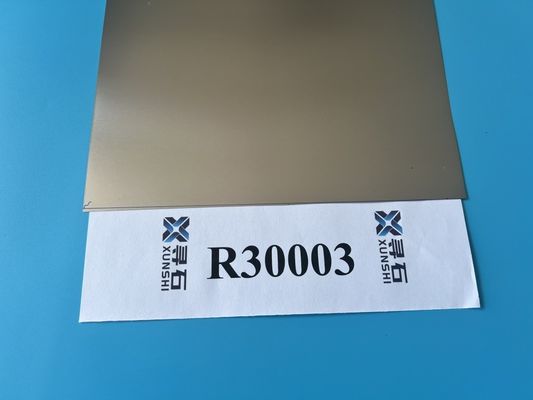

• Strip spec:0.05-2.0mm
• Round bar spec:Diameter 20-100mm

Equal grades

3J21,Phynox(France),Elgiloy,Co40CrNiMo,2.4711

We can supply R30003 products that meet the requirements of AMS 5876 D and AMS 5833 and ISO 5832-7.
