Cold Formed Superelastic Alloy ISO 5832-7 Cobalt Chromium Nickel Molybdenum Iron
| Place of Origin | China |
|---|---|
| Brand Name | XUNSHI |
| Certification | ISO 9001:2015 |
| Model Number | ISO 5832-7 |
| Minimum Order Quantity | 20kg |
| Price | Negotiable |
| Packaging Details | Playwoode case |
| Delivery Time | 45-50 days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 500kg per week |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Chemical Composition | Co40CrNiMo | Forms | Wire, Strip, Sheet, Bar |
|---|---|---|---|
| Equal Grades | R30003, Elgiloy, Phynox, 3J21, W.Nr.2.4711 | Sepc | ISO 5832-7 2016 |
| Product Name | Superelastic Alloy | Model | ISO 5832-7 |
| High Light | super elastic material,shape memory materials |
||
Product Description
ISO 5832-7 Forgeable and Cold-formed Cobaltchromium-nickel-molybdenum-iron Alloy
A-ONE ALLOY supplys R30003 strip per
Implants for surgery -Metallic materials - Part 7: Forgeable and cold-formed cobaltchromium-nickel-molybdenum-iron alloy
Chemical composition
| Element | Element compositional limits, % (m/m) |
| Cobalt Chromium Nickel Molybdenum Manganese Silicon Carbon Phosphorus Sulfur Beryllium Iron |
39 to 42 18,5 to 21,5 14 to 18 6,5 to 8,0 1,0 to 2,5 1 max. 0,15 max. 0,015 max. 0,015 max. 0,001 max. Balance |
Grain size
The grain size shall be no coarser than grain size No. 5.
Mechanical properties
| Condition |
Tensile strength min. MPa |
Proof stress min. MPa |
Percentage elongation min. % |
| Annealed | 950 | 450 | 65 |
| Hot worked | 950 | 600 | 20 |
| 30% cold-worked | 1 450 | 1 300 | 8 |
| Spring temper | 1 650 | 1 400 | 1 |
Forms of supply

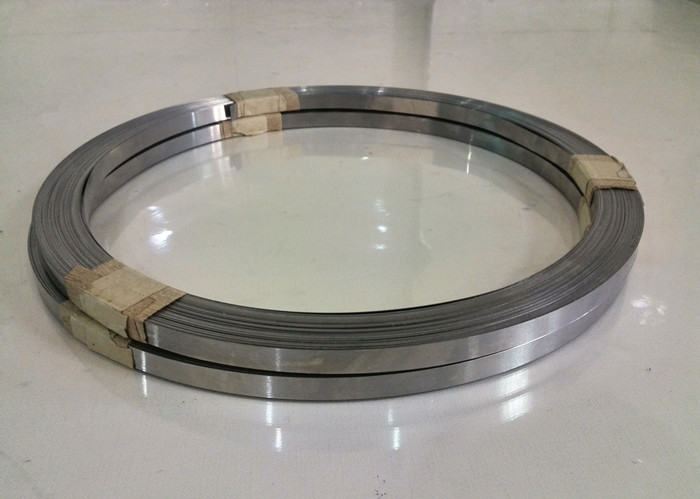

Cold rooled strip, cold drawn wire, cold drawn bar
