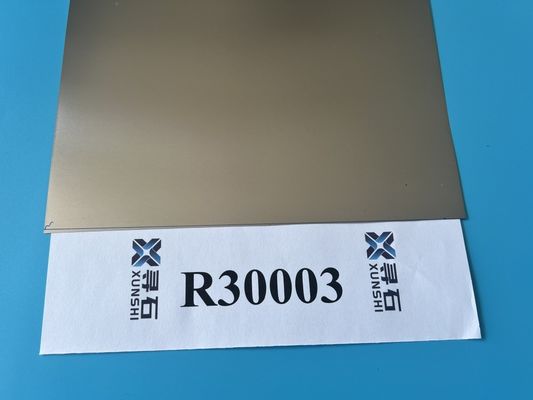

Super Thin R30003 2.4711 Cold Rolled Foil For Sensor and Damper Minimum Thickness 0.01mm

Place of Origin China
Brand Name XUNSHI
Certification ISO9001:2015, ROHS
Model Number R30003/R30008
Minimum Order Quantity 30 kg
Price USD 1500/kg, EXW
Packaging Details Plywood crate
Delivery Time 60 days
Payment Terms T/T
Supply Ability 100 kg per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Equal Grades Phynox, R30003, Elgiloy, 3J21, 2.4711 Spec ASTM F1058, AMS 5834
Forms Of Supply Cold Rolled Strip, Hot Forged Round Bar, Cold Drawn Wire Thickness 0.01-2.0mm
High Light

sensor Cold Rolled Foil


Elgiloy Phynox Cold Rolled Foil


damper Cold Rolled Foil

Leave a Message
Product Description

New Arrival: Super-thin R30003/R30008 Cold Rolled Foil for sensor and damper, minimum thickness 0.01mm


R30003/R30008 is is an austenitic alloy strengthened by cold work and capable of additional hardening by aging at a moderate temperature (around 500°C). In the fully hardened condition, its elastic modulus is around 210 000 MPa, with UTS levels up to 2500 MPa on cold rolled strip. In addition to its very high yield strength, PHYNOX offers a range of physical, chemical and technological properties that make it appropriate for a wide variety of applications.


Xunshi is glad to announce that we could offer cold rolled R30003 foil of thickness down to 0.01mm and width 70mm. The foil could be used in application like sensor and damper.


Phynox cold rolled strip is one of our main products and we have rich experience in the area. Our Phynox(2.4711) products are widely used in surgical implant industry, mobile phone, diaphragm valve, oil field monitor, spring seal,  spring energized seal, Variseal and spring.


Size of R30003/R30008 cold rolled strip/foil available

  • Thickness 0.01-2.50mm
  • Width: 1mm-240mm


Chemical composition(weight, %) ASTM F1058

Grade C Mn Si P S Co Cr Ni Mo Be Fe
R30003 0.15 max 1.5-2.5 1.2 max 0.015 max 0.015 max 39.0-41.0 19.0-21.0 14.0-16.0 6.0-8.0 0.10 max Rem
R30008 0.15 max 1.0-2.0 1.2 max 0.015 max 0.015 max 39.0-42.0 18.5-21.5 15.0-18.0 6.5-7.5 0.001 max REm



  • Spring
  • Oil field monitor
  • Aeronautical and aerospace equipment
  • Automotive ABS systems
  • Automotive injection systems
  • Electrical and electronic apparatus
  • Equipment for the chemicals and oil & gas industries
  • Flexible coupling
  • Pacemaker electrodes
  • Printer springs
  • Prostheses for osteosynthesis
  • Shaped springs (helical, etc…)
  • Surgical implants and medical instruments
  • Various diaphragms
  • Spring energized seal


  • Exceptional resistance to corrosion, stress corrosion cracking and hydrogen embrtittlement.
  • Good fatigue stregth.
  • The absence of aging in service.
  • Non-magnetic.
  • Ability to be used over a wide range of temperatures, from liquid helium to about 500°C.
  • Perfect passivity in contact with human tissues.
  • The possibility of increasing the strength of parts by age hardening after forming, leading to strength levels unattainable with other materials.
  • The absence of brittleness at low temperatures (no transition temperature).
  • A maximum service temperature about 100°C higher than for stainless steels.
  • A corrosion resistance vastly superior to that of molybdenum containing stainless steels.
  • A very high yield strength that combined with a high elastic modulus in both tension and torsion, enables the storage and rapid release of large amounts of elastic energy.

Forms of supply

  • Bar
  • Cold rolled strip/foil
  • Cold drawn wire
  • Flat wire
  • Heavy plate
  • Wire rod

Super Thin R30003 2.4711 Cold Rolled Foil For Sensor and Damper Minimum Thickness 0.01mm 0Super Thin R30003 2.4711 Cold Rolled Foil For Sensor and Damper Minimum Thickness 0.01mm 1Super Thin R30003 2.4711 Cold Rolled Foil For Sensor and Damper Minimum Thickness 0.01mm 2
