2J4 Iron Cobalt Permanent Magnet Alloy Cold Rolled Strip For Magnetic Brake China Origin

Place of Origin China
Brand Name XUNSHI
Certification ISO 9001:2015
Model Number 2J4
Minimum Order Quantity 20kg
Price Negotiable
Packaging Details Plywood case
Delivery Time 45-60 days
Payment Terms T/T, Western Union
Supply Ability 300 kg per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Equal Grade P6(USA) Form Of Supply Cold Rolled Strip, Wire, Round Bar
Type FeCoVNi Thickness 0.05~1.00mm
Product Name Permanent Magnet Alloy Certification ISO 9001:2015
High Light

Iron Cobalt Permanent Magnet Alloy

,

Round Bar Cobalt Iron Alloy

,

Cobalt Iron Alloy Cold Rolled Strip

Leave a Message
Product Description

2J4 Iron-Cobalt Permenent Magnetic Alloy For Magnetic Motor Rotor And Brake



2J4 is a type of Iron-Cobalt Permenent Magnetic Alloy,this alloy is suitable for making high efficiency hysteresis motor rotor with high operating temperature, and this alloy does not cause reduced magnetic performance in the range of +150~ -140 ℃.

Density of 2J4:8.2g/cm3



Chemical composition(wt,%)

C P S Si Mn Ni V Co Fe
0.12 max 0.025 max 0.020 max 0.50 max 0.50 max 5.30-6.70 3.50-4.50 44.0-46.0 Rem



Machenical properties

  • Good plasticity before tempering
  • General Welding performance
  • Good magnetic stability
  • Corrosion resistance properties
  • Good forming performance after continuous rolling



Standards

GB/T 14988-1994



Applications

  • Magnetic motor rotor, Magnetic brake
  • We can supply cold rolled strip of 2J4 alloy with mature process and stable quality in thickness range 0.05-1.0mm.



Equal Grade

P6(USA)

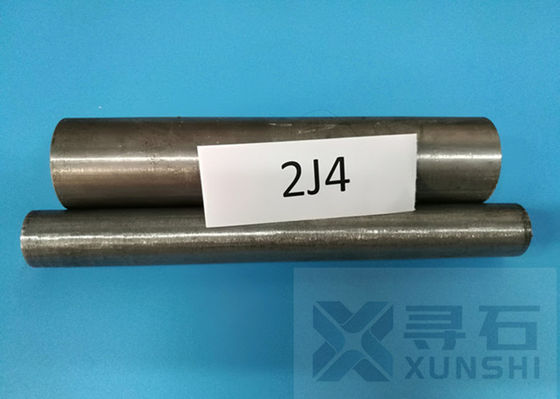

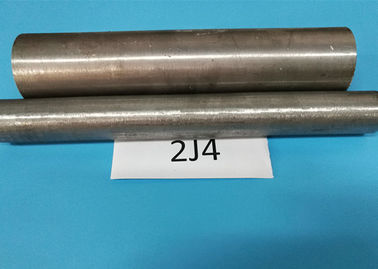

2J4 Iron Cobalt Permanent Magnet Alloy Cold Rolled Strip For Magnetic Brake China Origin 02J4 Iron Cobalt Permanent Magnet Alloy Cold Rolled Strip For Magnetic Brake China Origin 1
