FeCo17 VACOFLUX 17 high Magnetic Saturation up to 2.22 T high pressure diesel injection

Place of Origin China
Brand Name XUNSHI
Certification ISO 9001:2015
Model Number Feo17
Minimum Order Quantity 200 kg
Price USD 45-60 per kg

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Equal Grade Vacoflux 17 Form Of Supply Bright Bar, Cold Rolled Strip
Spec Xunshi Standard
Leave a Message
Product Description

Xunshi could now offer FeCO17 Vacoflux 17 Soft magneitc alloy with high performance.



VACOFLUX 17 exhibits a very high saturation of 2.22 T and is used in the area of high pressure diesel injection. The alloy can be cold formed.



Xunshi VACOFLUX 27 magnetic properties

B400A/m

(T)

B800A/m

(T)

B1600A/m

(T)

B2400A/m

(T)

B4000A/m

(T)

B8000A/m

(T)

B16000A/m

(T)

Hc(A/m)
1.40 1.60 1.72 1.79 1.88 2.02 2.21 152


Typical composition

Element % (mass)
Cobalt 16.5 – 17.5
Chromium 1.80 – 2.40
Molybdenum 0.65 – 0.95
Vanadium 0.40 max.
Sulphur 0.030 max.
Carbon 0.015 max.
Other (each) 0.30 max.
Iron Balanced



Character

  • Saturation magnetic induction intensity: 2.22T
  • Resistivity: ρe= 0.41 µΩm
  • Cobalt content is as low as 17%, effectively reducing costs



Forms of supply

  • Strip material, thickness 0.1 – 1 mm, width 30 – 220 mm

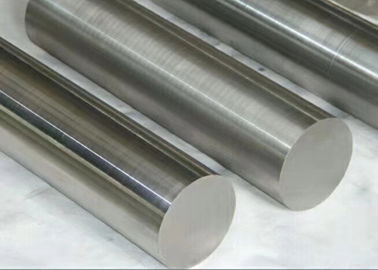

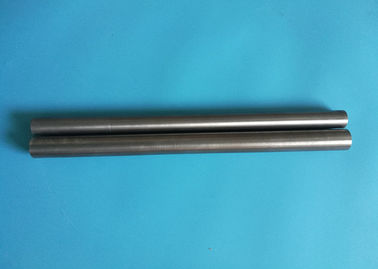

  • Solid rods, diameters 10 – 200 mm
  • Wire material, diameters ≤ 13.5 mm

FeCo17  VACOFLUX 17 high Magnetic Saturation up to 2.22 T  high pressure diesel injection 0FeCo17  VACOFLUX 17 high Magnetic Saturation up to 2.22 T  high pressure diesel injection 1
