Hiperco50 HS Soft Magnetic Alloy Cold Rolled Strip With High Yield Strength R30005 With Niobium Addition

XUNSHI could supply Hiperco 50 HS cold rolled strip. Thickness range 0.05mm~1.20mm and width 20-300mm.

Hiperco 50 HS alloy is an iron-cobalt-vanadium soft magnetic alloy which exhibits high magnetic saturation and a unique combination of high yield strength and moderate core loss. The alloy contains a niobium addition for grain refinement during mill processing and final heat treating to produce higher yield strength than conventional Hiperco 50(UNS R30005 alloy).

XUNSHI is proud to supply Hiperco 50 HS material delivered heat treated. As heat treatment is really very critical for 50HS and that's where XUNSHI has its strenght.

Hiperco 50 HS alloy strip should be considered a candidate for use in the manufacture of rotor laminations for aircraft power generation applications and for magngtic bearings.
These laminations are stamped from cold rolled strip and must be final annealed in a protective atmosphere or vacuum environment.

Typical magnetic properties

Typical mechanical properties

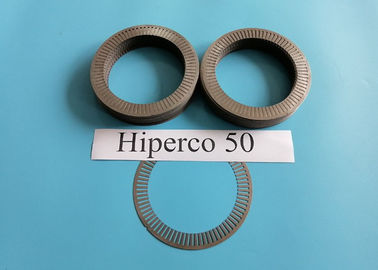

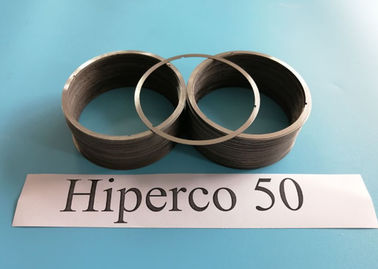

XUNSHI could deliver cold rolled strips, stamped laminations, heat treated laminations and rotors per customer requirements.

Typical Chemical composition

• Cobalt 48.75 %
• Vanadium 1.90 %
• Niobium 0.30 %
• Carbon 0.01 %
• Fe balance
