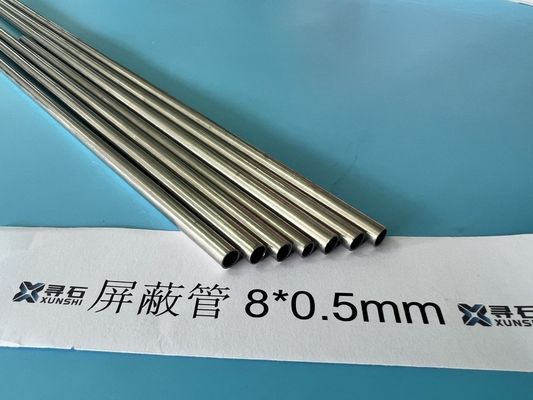

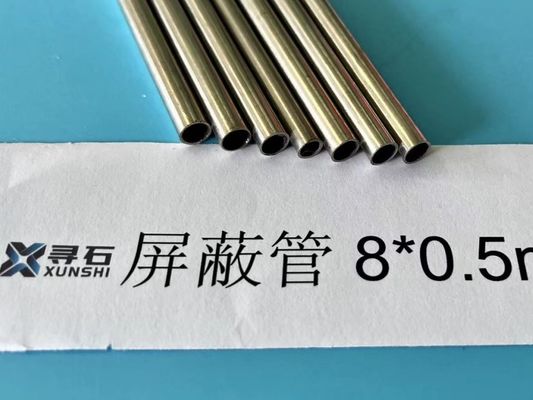

ASTM A753 Magnetic Shield Alloy MU-METAL Hymu 80 Tubing Diamter 8mm Thickness 0.5mm

Place of Origin China
Brand Name XUNSHI
Certification ISO 9001:2015
Model Number HYMU80
Minimum Order Quantity 10 kg
Price USD 80-150 per kg
Packaging Details Plywood crate
Delivery Time 45 days
Payment Terms T/T
Supply Ability 5000kg per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Equal Grade HYMU80, Mu-metal, N14080, 1J79 Spec DIN 17745 / DIN 17405 / DIN EN 60404-8-6 / ASTM A 753 / MIL-N-14411C
Form Of Supply Rod, Round Bar, Cold Drawn Wire, Sealess Pipe, Cold Rolled Strip
Highlight

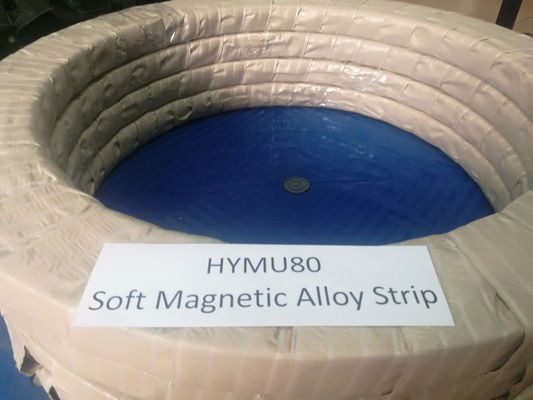

Thickness 0.5mm Soft Magnetic Alloy Strip

,

Magnetic Shield Alloy Tubing

Leave a Message
Product Description

Mu-metal Hymu80 is well known for its high performance in Magnetic Shield. It is widely used for shielding to protect electrical components from stray magnetic fields.

HYMU 80 alloy is an unoriented, NiFeMo alloy with 80% Nickel content. It could be heat treated to show very high initial permeabilities, maximum permeabilities, minimum hysteresis loss and AC core losses at low magnetic flux densities.



Chemical composition(ASTM A753 Alloy 4)

  • C: 0.05 max
  • Mn: 0.80 max
  • Si: 0.50 max
  • P: 0.02 max
  • S: 0.01 max
  • Cr: 0.30 max
  • Ni: 79.0-82.0
  • Mo: 3.5-6.0
  • Co: 0.5 max
  • Cu: 0.3 max
  • Fe: balance

Spec

  • DIN 17745
  • DIN 17405
  • DIN EN 60404-8-6
  • ASTM A 753
  • MIL-N-14411C



Main Character

  • Very high initial permeabilities
  • Maximum permeabilities
  • Minimum hysteresis loss
  • Minimum AC core losses



Application

  • Highly sensitive and small power transformers f in weak magnetic fields
  • Low power magnetic amplifier
  • Relay
  • Choke
  • Magnetic heads for magnetic recording devices
  • Magnetic shielding
  • Wound iron core
  • Cutting iron core
  • Laminated core.

Form of supply

  • Forging
  • Round bar
  • Cold drawn wire
  • Hot rolled plate/strip

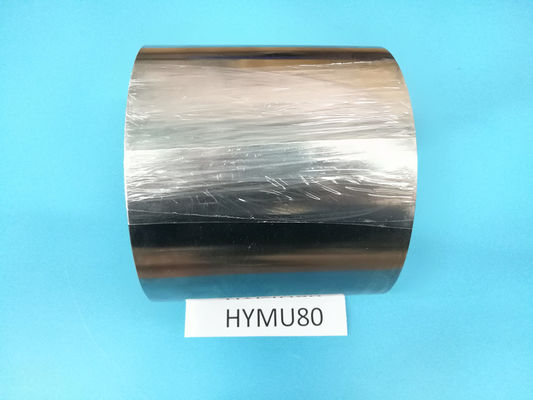

  • Cold rolled strip
  • Seamless pipe/tubing
  • Welding pipe/tubing
  • Capillary



ASTM A753 Magnetic Shield Alloy MU-METAL Hymu 80 Tubing Diamter 8mm Thickness 0.5mm 0ASTM A753 Magnetic Shield Alloy MU-METAL Hymu 80 Tubing Diamter 8mm Thickness 0.5mm 1

ASTM A753 Magnetic Shield Alloy MU-METAL Hymu 80 Tubing Diamter 8mm Thickness 0.5mm 2ASTM A753 Magnetic Shield Alloy MU-METAL Hymu 80 Tubing Diamter 8mm Thickness 0.5mm 3ASTM A753 Magnetic Shield Alloy MU-METAL Hymu 80 Tubing Diamter 8mm Thickness 0.5mm 4
