Hot Forged Plate Nimonic 80A Temperature Below 815 Degree Oxidation Resistance

Hot Forged Plate Nimonic 80A Temperature Below 815°C Good Oxidation Resistance

Nimonic 80A is a wrought, age-hardenable nickel-chromiumalloy, strengthened by additions of titanium, aluminum and carbon, developed for service at temperatures up to 815°C (1500°F). It is produced by high-frequency melting and casting in air for forms to be extruded.


Nimonic  80A is currently used for gas turbine components (blades, rings and discs), bolts, nuclear
boiler tube supports, die casting inserts and cores, and for automobile exhaust valves.

Chemical composition

Characters

• Good creep resistance performance at temperature 650°C~850°C.
• Good resistance to oxidation at temperature 650°C~850°C
• Good cold and hot work performance
• Good resistance to fatigue in serve work conditions

Application

• Gas turbine components such as blades, rings and plates, etc..
• Bolts used in temperature and stress limit
• Combustion engine exhaust valve and other high strength parts.
• Nuclear boiler tube bracket,
• High temperature springs

Equal Grades

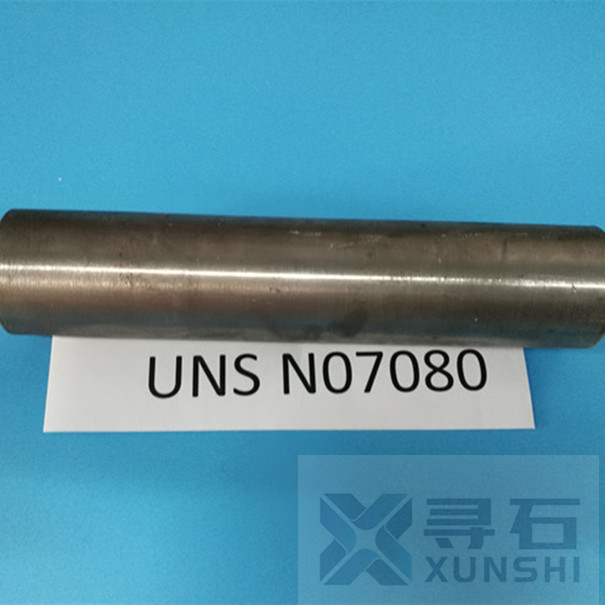

• UNS N07080,
• W. Nr. 2.4952,
• W. Nr. 2.4631

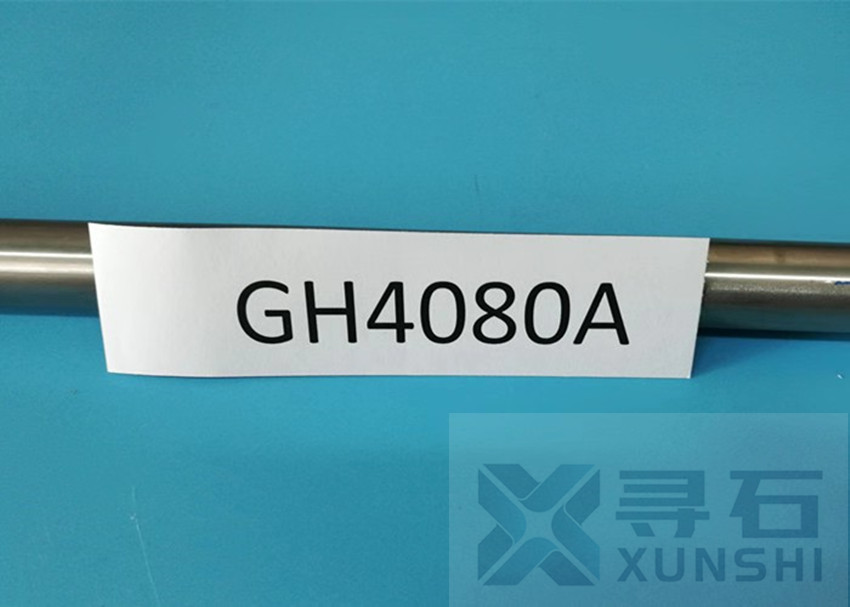

• GH4080A

Heat treatment process

The stamping forming of sheet and strip requires intermediate vacuum annealing after each forming with 1060 °C ± 10 °C,10min, argon fan cooling. The final heat treatment of the parts is timeliness in a vacuum furnace with 750 °C ± 10 °C,4h, argon fan cooling. For local machining hardening of the blade after consolidation (before limitation), argon or hydrogen protection surface annealing shall be performed according to the specified requirements with an annealing temperature of 1070 °C~1090 °C.

Forms of supply

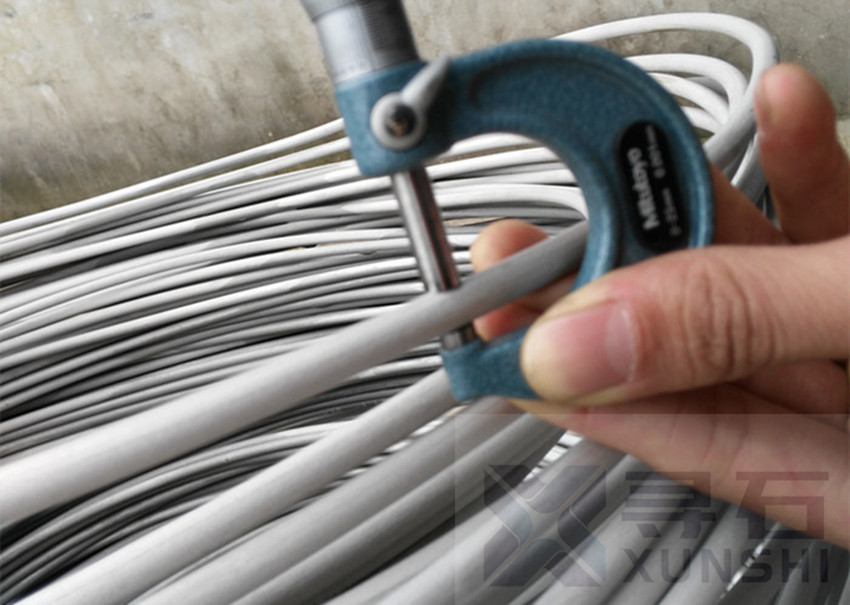

Hot-rolled rods, hot-forged rods, cold-drawn rods, hexagonal rods, ring parts, hot-rolled plates, cold-rolled plates, cold-rolled strip and various non-standard forgings.
