Hot Forged Wire Nimonic 80A , Temperatures Below 815°C Round Bar Nimonic Material

Place of Origin China
Brand Name XUNSHI
Certification ISO9001
Model Number Nimonic 80A
Minimum Order Quantity 200kg
Price Negotiable
Packaging Details Plywood case
Delivery Time 45~50 days
Payment Terms T/T
Supply Ability 500kg per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Equal Grades UNS N07080, W. Nr. 2.4952, 2.4631 Density 8.1g/cm3
Forms Of Supply Bar, Rod, Wire, Plate, Sheet, Pipe Spec ASTM B 637
Product Name Nimonic 80A
Highlight

high strength alloys

,

nimonic 90 bar

Leave a Message
Product Description

Nimonic 80A Hot Forged Round Bar for Service at Temperatures up to 815°C





NIMONIC 80A is a wrought, age-hardenable nickel-chromiumalloy, strengthened by additions of titanium, aluminum and carbon, developed for service at temperatures up to 815°C (1500°F). It is produced by high-frequency melting and casting in air for forms to be extruded.
Electroslag refined material is used for forms to be forged. Vacuum refined versions are also available.
NIMONIC 80A is currently used for gas turbine components (blades, rings and discs), bolts, nuclear
boiler tube supports, die casting inserts and cores, and for automobile exhaust valves.



Chemical composition

Element C Mn Si S Cr Ti Al Fe Ni
Weight(%) 0.10 max. 1.00 max. 1.00 max. 0.015 max. 18.00-21.00 1.80-2.70 0.50-1.80 3.00 max. Rem



Characters

  •  Good creep resistance performance at temperature 650°C~850°C.
  •  Good resistance to oxidation at temperature 650°C~850°C
  •  Good cold and hot work performance
  •  Good resistance to fatigue in serve work conditions

Application

  •  Gas turbine components such as blades, rings and plates, etc..
  •  Bolts used in temperature and stress limit
  •  Combustion engine exhaust valve and other high strength parts.
  •  Nuclear boiler tube bracket,
  •  High temperature springs

Forms of supply

  •  Bar
  •  Rod
  •  Wire
  •  Forging
  •  Sheet
  •  Plate
  •  Pipe

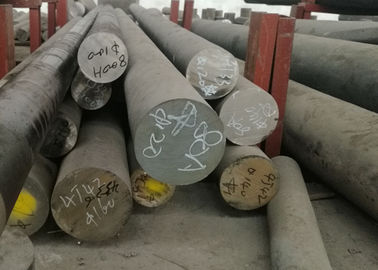

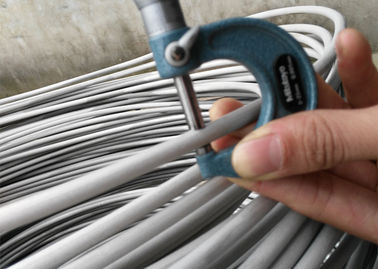

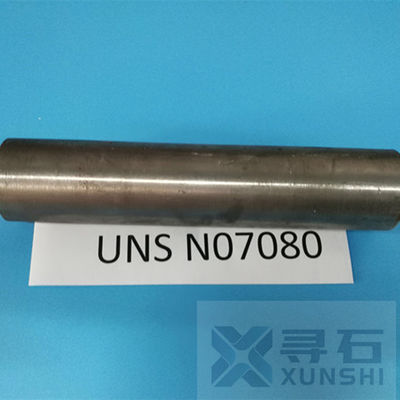

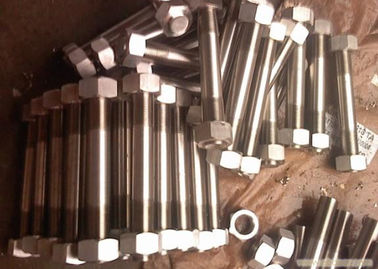

Hot Forged Wire Nimonic 80A , Temperatures Below 815°C Round Bar Nimonic Material 0Hot Forged Wire Nimonic 80A , Temperatures Below 815°C Round Bar Nimonic Material 1Hot Forged Wire Nimonic 80A , Temperatures Below 815°C Round Bar Nimonic Material 2Hot Forged Wire Nimonic 80A , Temperatures Below 815°C Round Bar Nimonic Material 3
