ASTM A801 Saturation Soft Magnetic Alloys FeCo27 Cold Rolled Strip
Spec | ASTM A801-2014 | Equal Grade | HiperCo27, Vacoflux27, 1J27, FeCo27 |
---|---|---|---|
Forms | Strip, Wire, Round Bar | Delivery Condition | Forged, Rough Machined |
Size | Diameter 20-500mm | Product Name | Cobalt Iron Alloy |
High Light | Saturation Soft Alloy,Soft Magnetic Alloys Cold Rolled Strip,Soft Magnetic Alloys ASTM A801 |

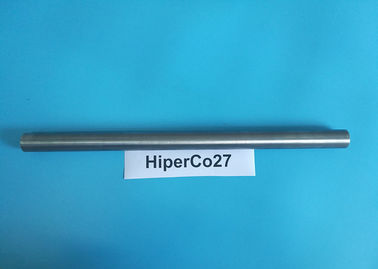

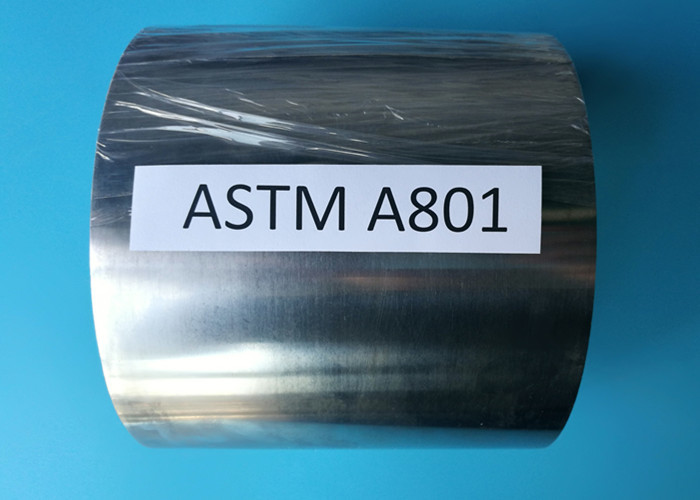

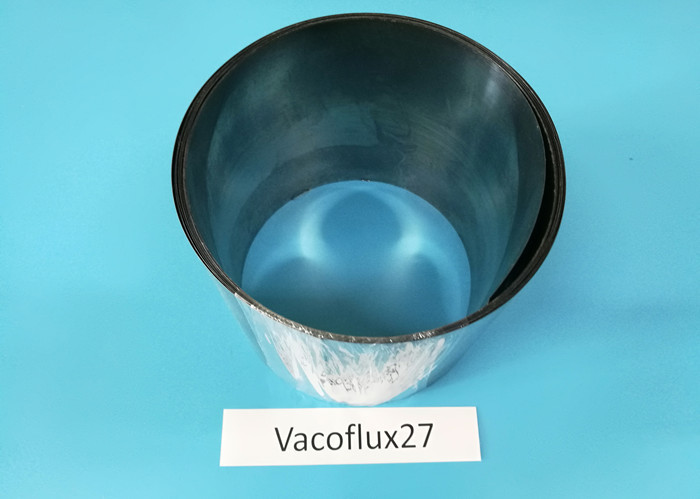

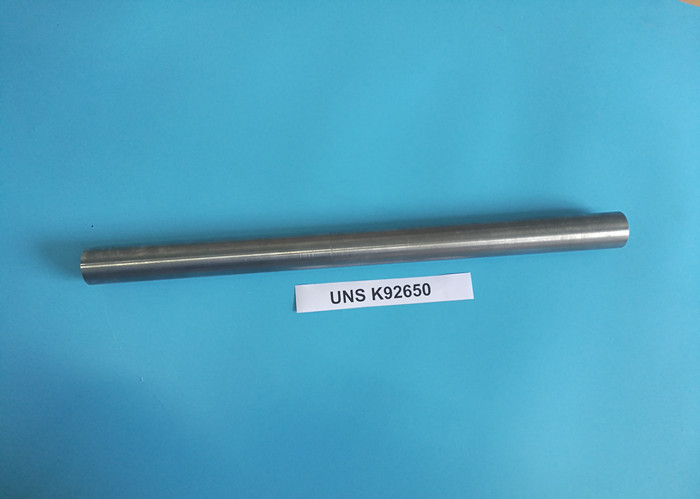

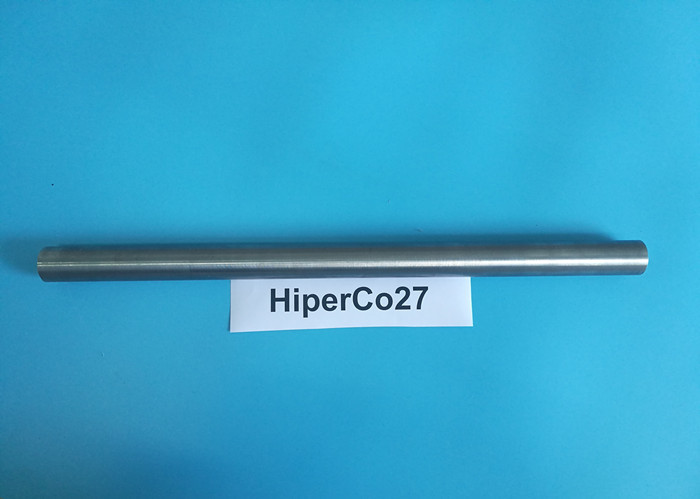

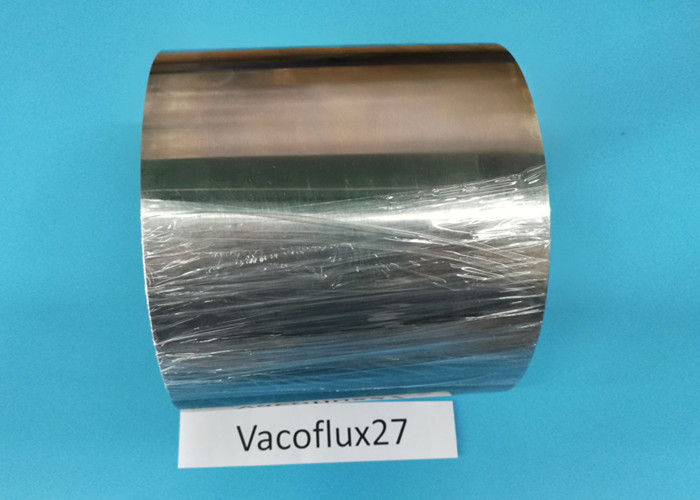

ASTM A801 High Magnetic Saturation Soft Alloy FeCo27 Cold Rolled Strip
FeCo27 is an iron-cobalt soft magnetic alloy with high magnetic saturation.The main component of this alloy is 27% cobalt, the rest being other elements such as Fe and Ni, Cr.XUNSHI is one of the Chinese manufacturers who are able to produce FeCo27.
FeCo27 is also named 1J27 in China. It is a new type of soft magnetic alloy in China even it is already widely introduced by the inventor Carpenter.
Characters
High magnetic saturation
Good mechanical toughness
Good ductility
High saturation induction
High curie temperature: 925°C
Applications
Motors, generators, pole pieces, relays and magnetic bearing.
Chemical composition
Element | C | Mn | Si | P | S | Cr | Ni | Co | V | Fe |
Weight(%) | 0.025 max | 0.35 max. | 0.35 max. | 0.015 max | 0.015 max | 0.75 max | 0.75 max | 26.50~28.50 | 0.35 max. | Balance |
Available Forms
Cold-Rolled Strip.
Forging Billet
Hot-Rolled Bar, Plate, and Strip—Hot-rolled, hotrolled and acid cleaned
