1J22 Cold Rolled Strip Soft Magnetic Alloy FeCoV Thickness 0.20mm 0.35mm in stock

Place of Origin China
Brand Name XUNSHI
Certification ISO 9001
Model Number 1J22
Minimum Order Quantity 20kg
Price Available per request
Packaging Details Wooden case, carton
Delivery Time 30-45 working days
Payment Terms T/T, Western Union
Supply Ability 500 kg per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Equal Grades HiperCo50, Supermendur, R30005, Vacoflux Diameter 0.1~5.0mm
Hc ≤100Oe Curie Point 980°C
Magnetostriction 60-100ppm Spec GB/T 14986-2008
High Light

High Curie Temperature Soft Magnetic Alloy


Dia 5.0mm Soft Magnetic Alloys


1J22 Soft Magnetic Alloy

Leave a Message
Product Description

High Curie Temperature Up To 980℃ 1J22 Strip Soft Magnetic Alloy


Product characteristics

1J22 alloy is one of the highest saturation magnetic induction intensity (2.4T) in all soft magnetic alloys, the curie point is up to 980℃, Saturatated magnetostrictIive coefficient is 60~100PPM.


Due to the high Curie point, the alloy is allowed to operate at higher temperatures where other soft magnetic materials have been completely demmagnetized and maintain good magnetic stability, Due to the large magnetostrictive coefficient, it is suitable for making magnetostrictive transducers, with high output energy and high working efficiency. The alloy has low resistivity (0.27 Ω·m) and can not be used at high frequencies,due to the ally is expensive, easy to oxidation and poor processing performance limited the use of materials.


Equal grades of 1J22

HiperCo50, Supermendur, R30005, Vacoflux



Highest magnetic saturation in all soft magnetic alloys

High Curie temperature up to 980℃

High magnetostriction

Product Name High Curie temperature Soft Magnetic Alloy
Diameter 0.1~5.0mm
Hc ≤100Oe
Curie point 980°C
Magnetostriction 60-100ppm
Spec GB/T 14986-2008
Equal grades HiperCo50



Special motors for the aerospace industry

Electromagnets for medical applications

Electrical generators

Specialty transformers

Pole pieces for electromagnets

Magnetic bearings

High magnetic flux devices and instruments

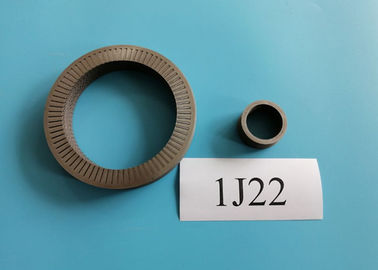

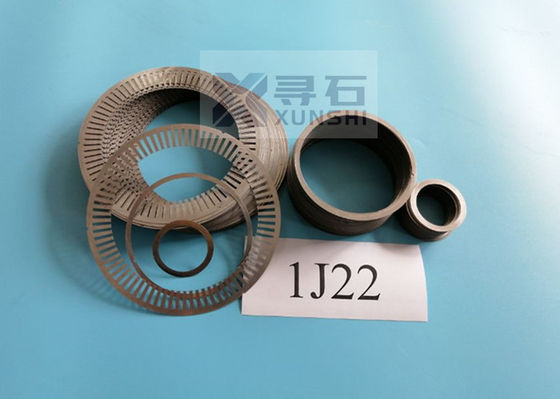

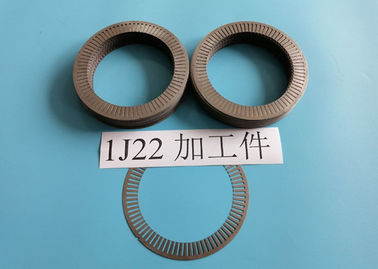

We can supply 1J22 in forms of hot rolled strip/plate, cold rolled strip, hot rolled round bar, hot forged bar, cold drawn wire and parts machined and heat treated according to customer requirements.
