Product Details:
Payment & Shipping Terms:
|
| Spec: | ASTM A753 | Form: | Strip |
|---|---|---|---|
| Thickness: | 0.05-2.0mm | Width: | 20-240mm |
| Simialr Grades: | UNS K94490, K94840, N14076 | Type: | FeNi Alloy |
| High Light: | ASTM A753 Soft Magnetic Alloys,2.0mm Soft Magnetic Alloys,240mm Soft Magnetic Alloys |
||
ASTM A753 UNS N14080 is a commonly used wrought nickel-iron soft magnetic alloy produced or supplied expressly for use in magnetic cores and other parts requiring high magnetic permeability, high electrical resistivity, low coercive field strength, and low core loss.
The material is capable of being produced in a wide variety of forms and conditions suitable for further manufacture into specific magnetic articles. The desired form and condition shall be specified and should be discussed with the A-one ALLOY before ordering to assure receiving the appropriate product.

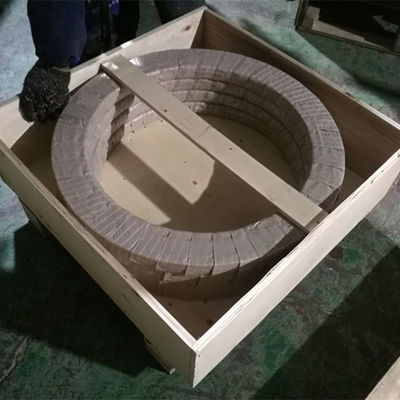

Forms available at A-one Alloy
Chemical composition
| Element | C | Mn | Si | P | S | Cr | Ni | Mo | Co | Cu | Fe |
| Weight | 0.05 max | 0.80 max | 0.50 max | 0.02 max | 0.01 max | 0.30 max | 79.0~82.0 | 3.5~6.0 | 0.50 max | 0.30 max | Rem |
