ASTM A801 Soft Magnetic Alloys HiperCo27 High Saturation Induction Cold Rolled Strip

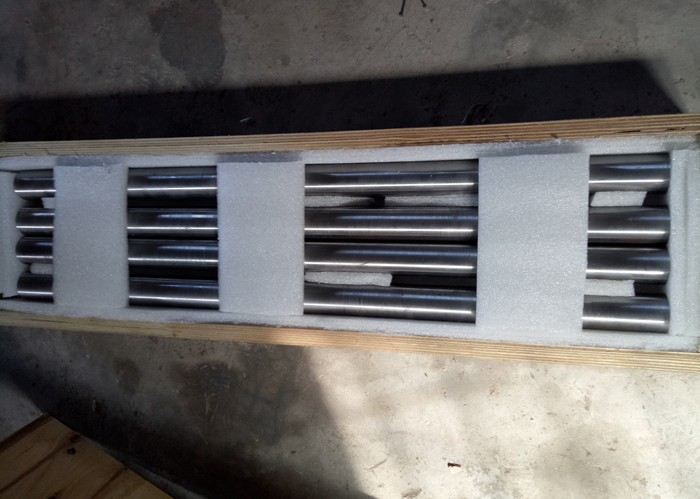

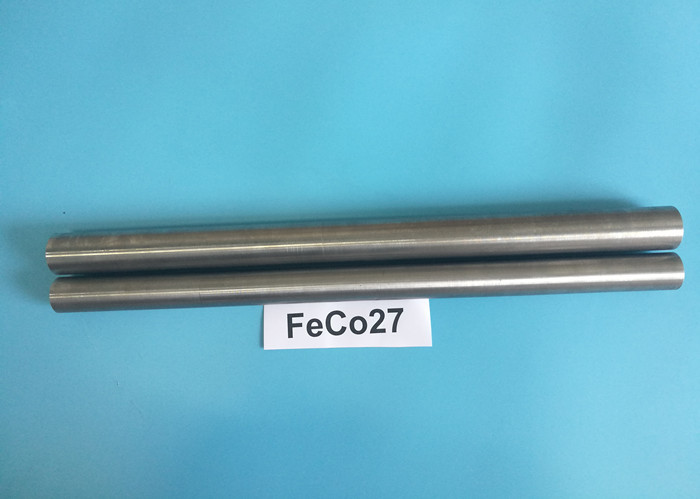

HiperCo27 High Saturation Induction Soft Magnetic Alloy Round Bar

HiperCo27(UNS K92650) is named 1J27 in China. It is a new type of soft magnetic alloy in China even it is already widely introduced by the inventor Carpenter. A-one Alloy is among the several manufacturers who are able to produce HiperCo27 products in forms of cold rolled strip and round bar.

HiperCo27 is a better choice when the fabrication is considered when HiperCo50 is somehow has better permeability and coercive force-even the difference is not big. The magnetic saturation of both alloys is nearly identical. And, Hiperco 27 does not exhibit the brittleness of Hiperco50.

Chemical Requirements(Weight Percent)

Carbon, max 0.025
Manganese, max 0.35
Silicon, max 0.35
Phosphorus, max 0.015
Sulfur, max 0.015
Chromium, max 0.75
Nickel, max 0.75
Cobalt 26.50 to 28.50
Vanadium max 0.35
Iron remainder


Characters

•  High magnetic saturation
•  Good mechanical toughness
•  Good ductility
•  High saturation induction
•  High curie temperature: 925 °C

Applications

Motors, generators, pole pieces, relays and magnetic bearing.

Standards

ASTM A801 Standard Specification for Wrought Iron-Cobalt High Magnetic Saturation Alloys (UNS R30005 and K92650)
