ASTM F30 Iron-Nickel Sealing Alloy N14052 Alloy 52 Sealing To Glass In Electronic Applications
| Place of Origin | China |
|---|---|
| Brand Name | XUNSHI |
| Certification | ISO 9001:2015 |
| Model Number | N14052 |
| Minimum Order Quantity | 20 kg |
| Price | USD 40-60 PER KG, EXW |
| Packaging Details | Plywood crate |
| Delivery Time | 45 days |
| Payment Terms | T/T |
| Supply Ability | 100 ton per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Equal Grade | N52, Alloy 52, 4J50 | Form Of Supply | Cold Rolled Strip, Cold Drawn Wire, Hot Forged Round Bar, Forging Pieces, Tube, Capillary |
|---|---|---|---|
| Spec | ASTM F30 | ||
| High Light | N14052 Iron-Nickel sealing Alloy,52 Iron-Nickel sealing Alloy,electronic Iron-Nickel sealing Alloy |
||
Product Description
N14052 Alloy 52 sealing to glass in electronic applications
Alloy 52 is also known as N52 alloy. It is a FeNi alloy for glass-to-metal seals for some of the soft glasses and ceramics. It is intended primarily for sealing to glass in electronic applications but may be used for sealing to ceramics as well.
Chemical composition
| Element | Ni | Mn | Si | C | Cr | P | S | Al | Fe |
| wt, % | 50.5 | 0.60 | 0.30 | 0.05 | 0.25 | 0.025 | 0.025 | 0.1 | Rem |
The nickel contents listed are nominal. The nickel contents of the alloys shall be adjusted by the manufacturer so that the alloys meet the requirements for thermal expansion. The 52 Alloy is specifically intended to match lead (Pb) sealing glasses
Features
- Good ductility
- Near zero coefficient of linear thermal expansion
- High strength and toughness at cryogenic temperatures
Applications
- Electron gun components
- Hermetic feedthroughs
- Magnetic reed switches
- Glass to metal seals that need controlled linear expansion
Equal grades
- 1.3923
- 2.4478
- UNS N14052
- DIN 17745
- ASTM F30
- A54-301
- N52
- Alloy 52
- Nilo 52
Form of supply

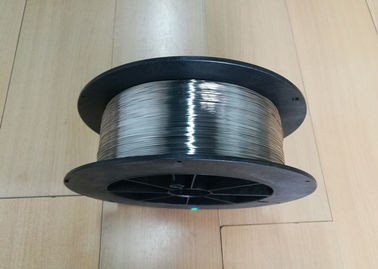

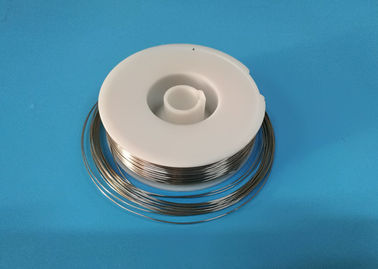

- Cold drawn wire
- Cold rolled strip

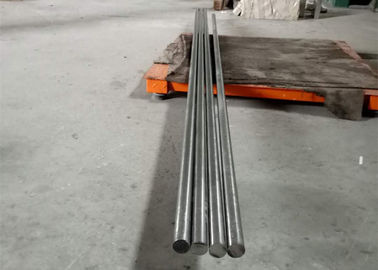

- Hot forged round bar
- Pipe

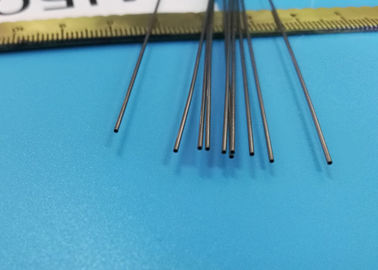

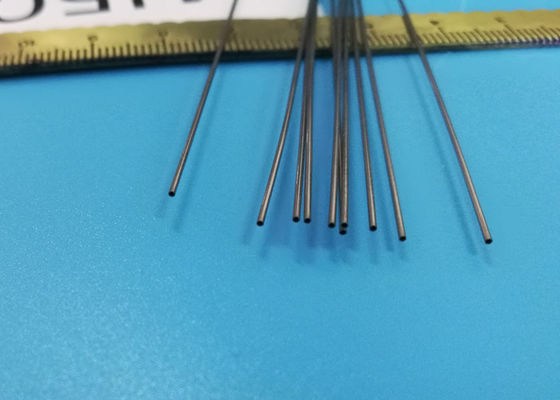

- Capillary
