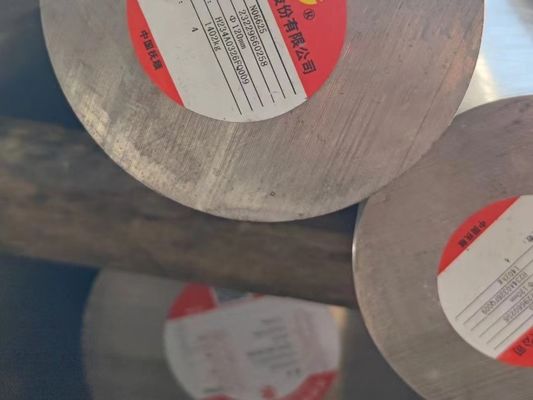

Inconel 625 Hot Forged Round Bar With High Strength And Corrosion Resistance

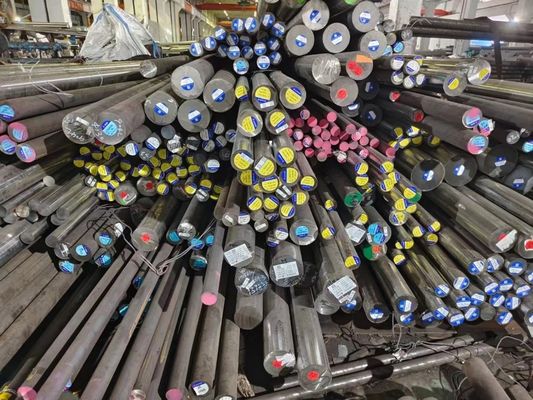

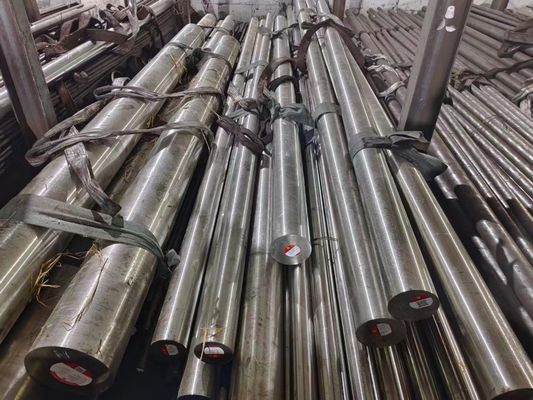

Inconel 625 hot forged round bar stock items
INCONEL 625 is a widely used grade among the Inconel series nickel alloys, and it is also a superior product of Xunshi New Material. Xunshi provides Inconel 625 products with rich shapes and complete specifications, and various customized products according to different standards and specifications are available from us. The Inconel 625 product form supply of Xunshi New Materials includes round rods, laths, wires, wires, Rods, hot-rolled plates, cold-rolled plates, strips, profiles, welded pipes, seamless pipes, capillary tubes, forgings, pipe fittings, flanges, fasteners, welding wire, welding rods and 3D printing powder, etc.
Inconel 625 is widely used due to its high strength, excellent workability, good weldability and excellent corrosion resistance. Its operating temperature range can cover cryogenic temperatures to 1800°F (982°C).
The strength of INCONEL 625 alloy is generated by the hardening effect of molybdenum and niobium in the nickel-chromium matrix, so the alloy does not require precipitation hardening. This combination of elements is also the reason why the material is super corrosion-resistant in many highly corrosive environments and resistant to oxidation and carburization in high-temperature environments.

Chemical composition(%, wt)

• Nickel(Ni): 58.0 min.
• Chromium(Cr): 20.0-23.0
• Iron(Fe): 5.0 max.
• Molybdenum(Mo): 8.0-10.0
• Niobium (plus Tantalum)(Nb+Ta): 3.15-4.15
• Carbon(C): 0.10 max.
• Manganese(Mn): 0.50 max.
• Silicon(Si): 0.50 max.
• Phosphorus(P): 0.015 max.
• Sulfur(S): 0.015 max.
• Aluminum(Al): 0.40 max.
• Titanium(Ti): 0.40 max.
• Cobalt(Co): 1.0 max.


Physical property

• Density, 8.44g/cm3
• Melting Range:1290-1350°C
• Permeability at 200 Oersted (15.9 kA/m): 1.0006
• Curie Temperature: -196°C



Mechanical property



Spec
Rod, Bar, Wire and Forging Stock -
ASTM B 446/ASME SB 446 (Rod & Bar),
ASTM B 564/ASME SB 564 (Forgings),
SAE/AMS 5666 (Bar, Forgings, & Rings),
SAE/AMS 5837 (Wire), ISO 9723 (Rod & Bar),
ISO 9724 (Wire),
ISO 9725 (Forgings),
VdTÜV 499 (Rod & Bar),
BS 3076NA21 (Rod & Bar),
EN 10095 (Rod, Bar, & Sections),
DIN 17752 (Rod & Bar),
ASME Code Case 1935 (Rod, Bar, & Forgings),
DIN 17754 (forgings),
DIN 17753 (Wire).
Plate, Sheet and Strip -
ASTM B 443/ASTM SB 443 (Plate, Sheet & Strip),
SAE/AMS 5599 & 5869 & MAM 5599 (Plate, Sheet & Strip),
ISO 6208 (Plate, Sheet & Strip),
VdTÜV 499 (Plate, Sheet & Strip),
BS 3072NA21 (Plate & Sheet),
EN 10095 (Plate, Sheet & Strip),
DIN 17750 (Plate, Sheet & Strip),
ASME Code Case 1935.
Pipe & Tube - ASTM B 444/B 829 & ASME SB 444/SB 829 (Seamless Pipe & Tube),
ASTM B704/B 751 & ASME SB 704/SB 751 (Welded Tube),
ASTM B705/B 775 & ASME SB 705/SB 775 (Welded Pipe),
ISO 6207 (Tube),
SAE/AMS 5581 (Seamless & Welded Tube),
VdTÜV 499 (Tube),
BS 3074NA21 (Seamless Pipe & Tube),
DIN 17751 (Tube),
ASME Code Case 1935.

Other Product Forms -
ASTM B 366/ASME SB 366 (Fittings),
ISO 4955A (Heat Resisting Steels & Alloys),
DIN 17744 (Chemical composition of all product forms).

Filler Metal
ERCrNiMo-3

Character

• High strength
• Excellent fabricability
• Excellent joining property
• Out-standing corrosion resistance
• Service temperatures range from cryogenic to 1800°F (982°C).
• Pitting and crevice corrosion
• High corrosion-fatigue strength
• High tensile strength,
• Resistance to chloride-ion stress-corrosion cracking
• High creep and rupture strength
• Out-standing fatigue and thermal-fatigue strength
• Oxidation resistance
• Excellent weldability and brazeability
• Outstanding and versatile corrosion resistance under a wide range of temperatures and pressures
• Ease of fabrication
• High strength, excellent uniform corrosion resistance, resistance to stress cracking and excellent pitting resistance in 500°-600°F (260-316°C) water
• High allowable design strength at elevated temperatures, especially between 1200°-1400°F (649-760°C)



Application

• Mooring ship cables
• Motor gunboat propeller blades
• Submarine auxiliary propulsion motors
• Submarine quick disconnect joints
• Exhaust ducts for naval vessels
• Protective jackets for submarine communication cables
• Submarine sensor controllers
• Steam pipelines expansion joints
• Springs
• Seals
• Expansion joints for underwater control
• Cable joints
• Fasteners
• Flexible devices and instrument components for oceanography
• Aircraft ducting systems
• Engine exhaust systems
• Thrust-reverser systems
• Resistancewelded honeycomb structures for housing engine controls, fuel and hydraulic line tubing
• Spray bars
• Bellows
• Turbine shroud rings
• Heat-exchanger tubing in environmental control systems.
• Combustion system transition liners,
• Turbine seals
• Compressor vanes
• Thrust-chamber tubing for rocke
• Bubble caps
• Tubing
• Reaction vessels
• Distillation columns
• Heat ex-changers
• Transfer piping
• Valves
• Reactor-core and control-rod components in nuclear water reactors


Forms of supply

• Round rods
• Laths
• Wire
• Wire rod
• Rods
• Hot-rolled plate
• Cold-rolled plate
• Strip
• Profile
• Welded pipes
• Seamless pipe
• Capillary tube
• Forging
• Pipe fittings
• Flange
• Fastener
• Welding wire
• Welding rod
• 3D printing powder
