Magnetostrictive Waveguide Cable Dia 0.80mm for Chemical industry

Place of Origin China
Brand Name XUNSHI
Certification ISO 9001:2015
Model Number SZXS-C-JE-080-S
Minimum Order Quantity 100 meters
Price USD3.5 per meter, EXW
Packaging Details Carton
Delivery Time 3-5 working days
Payment Terms T/T
Supply Ability 10000 meters per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Working Temperature -40~100°C Stock Size 0.50mm, ,0.75mm,0.80mm
Available Per Request 0.35-1.0mm Product Name Magnetostrictive Waveguide Wire
Application Chemical Industry, Instrument Certification ISO 9001:2015
High Light

Waveguide Cable Dia 0.80mm


Chemical Industry Waveguide Cable


Chemical Industry Magnetostrictive Wire

Leave a Message
Product Description

Magnetostrictive Waveguide Wire Diameter 0.80mm delivered in straight


Xunshi is one of the leading suppliers of Magnetostrictive Waveguide Wire in China.


Magnetostrictive waveguide wire with a diameter of 0.80mm has been arrived in stock.


Please note that we stock first-hand materials, no middlemen to make the difference.

In addition, for customer convenience, our waveguide wire is delivered in a straight wire state.


As the core part of the sensor, the magnetostrictive waveguide wire is crucial to the quality of the product, the waveguide wire of 0.80mm has high accuracy, good consistency and good lintness. In order to facilitate transportation, the waveguide wire is packaged as disk packaging, but it can naturally bounce straight after releasing the packaging, which solves the problem that troubled many manufacturers to install because of the bending of waveguide wire. Waveguide wire is hundreds of meters, customers can cut any length according to their needs for the magnetostrictive liquid level meter of various scales.



Parameter Common High temperature
Magnetostriction 6-8ppm 25-32ppm
Density 8.05/cm3 8.3/cm3
Tensile strength >686MPa >700MPa
Curie point 120℃ 530℃
Working temperature -40~100°C -40~300°C
Diameter 0.35mm.50mm.75mm.80mm1.0mm 0.50mm.80mm


Our company has gradually won the trust of more and more domestic and foreign customers through the efforts of all the employees.A number of well-known chinese mangetostrictor liquid level meter manufacturers have been cooperated with  us,and more and more manufacturers are testing our waveguide wire products.


At present, our waveguide wire products have been exported to Korea, USA, Brazil, Argentina, India, Italy, etc. Some of these foreign customers are well-known in the industry, such as US APG, and some customers are new forces in this field. This shows that the domestic and foreign customers also fully recognize the quality of our waveguide wire.


Xunshi keeps over 100,000 meters of Magnetostrictive Waveguide Wire in diameter 0.50mm, 0.75mm, 0.80mm and 1.00mm in stock. This makes it possible for us to make the-next-day delivery.


Note: Our waveguide wire has no agents and no domestic and foreign branches. Any other organization in our name supplier is fake, please pay attention to Identify.

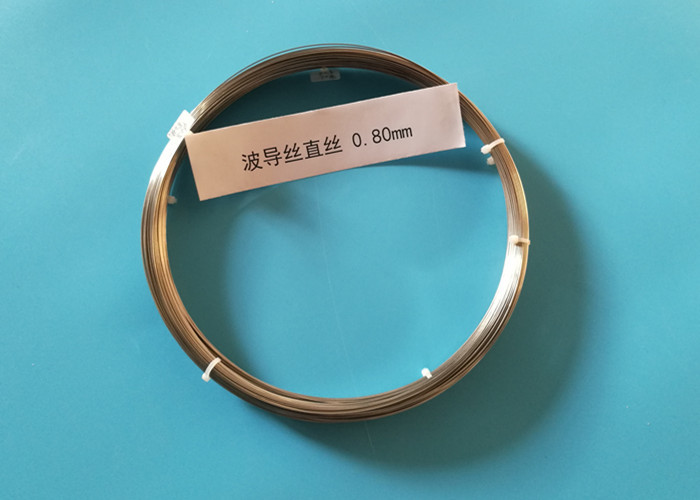

Magnetostrictive Waveguide Cable Dia 0.80mm for Chemical industry 0Magnetostrictive Waveguide Cable Dia 0.80mm for Chemical industry 1

Magnetostrictive Waveguide Cable Dia 0.80mm for Chemical industry 2Magnetostrictive Waveguide Cable Dia 0.80mm for Chemical industry 3
