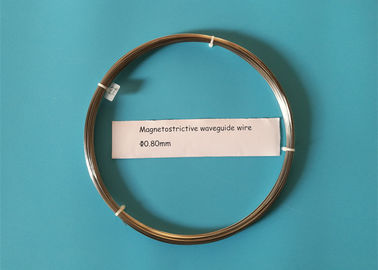

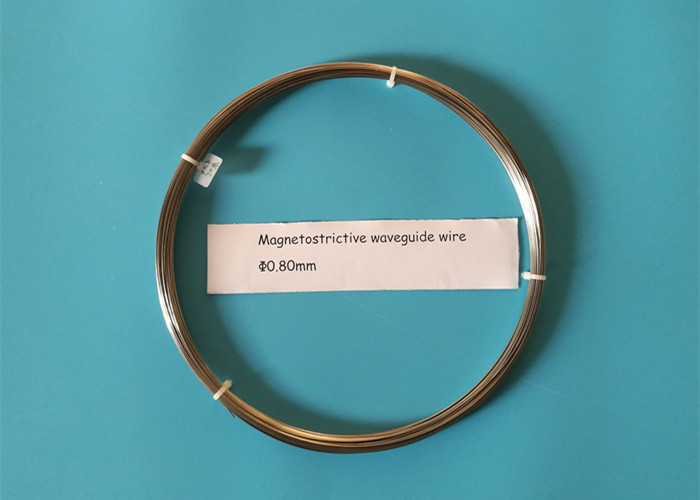

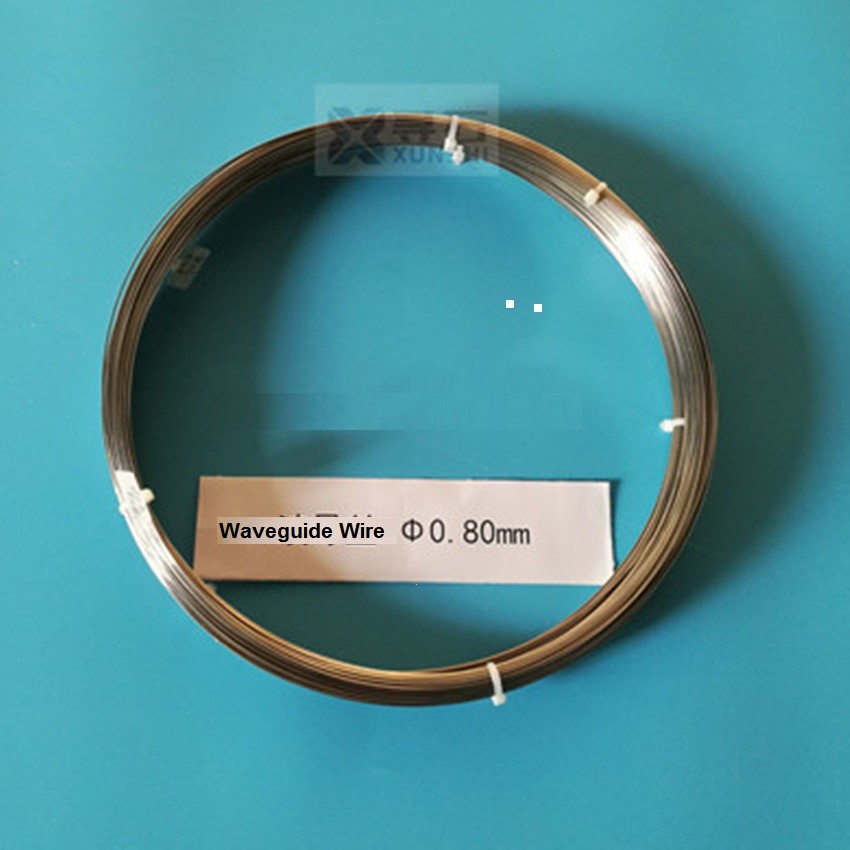

Magnetostrictive Waveguide Wire Diameter 0.80mm For Liquid Level Sensor

Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xWorking Temperature | -40~100°C | Stock Size | 0.50mm, ,0.75mm,0.80mm |
---|---|---|---|
Available Per Request | 0.35-1.0mm | Product Name | Magnetostrictive Waveguide Wire |
Application | Chemical Industry, Instrument | Certification | ISO 9001:2015 |
Highlight | Diameter 0.80mm Waveguide Cable,Liquid Level Sensor Waveguide Cable,Liquid Level Sensor Magnetostrictive Wire |
Magnetostrictive Waveguide Wire Diameter 0.80mm China supplier
Xunshi is one of the leading suppliers of Magnetostrictive Waveguide Wire in China.
Xunshi keeps 100,000+ meters of Magnetostrictive Waveguide Wire in diameter 0.50mm, 0.75mm, 0.80mm and 1.00mm in stock. This makes it possible for us to make the-next-day delivery.
The main character of ours waveguide wire is high accuracy and stable signal, suitable for various magnetostrictable liquid level meters with a measuring range below 4 meters. The using temperature of the waveguide wire is below 100 °C.
Applications
Magnetostrictive liquid-level meter and sensor
Widely used in gas station level management, precision flow control, super precision positioning, sealing safety control of valves and water tight doors in deep-sea nuclear submarine, etc
Parameters:
Magnetostrictive coefficient: 28ppm
Saturated Magnetostrictive factor: ≈ 30ppm
Density: 8.0g/cm3
Line expansion coefficient: 8.5ppm/K (@20-100 °C)
Restivity: 1.1 Ω·m
Tensile strength: >930MPa
Operating temperature:-40-100 °C
Suzhou Xunshi New Materials Co., Ltd. provides high-quality waveguide wire products for customers from all over the world, and our waveguide wire is widely used in magnetostrictive level gauge, sensors and other products. We keeps waveguide wire of diameter 0.5mm,0.75mm and diameter 0.80mm in stock. Total amount over 1,000,000 meters.
Performance test
We have special testing equipment, which conducts signal test after the production of each batch of waveguide wire to ensure that its quality is consistent.
Packaging and shipping
In order to ensure the products performance, the waveguide wire cannot be bent and scratched, in order to ensure the product is not damaged during transportation, we specially made special packaging to make sure that the quality of the product is as good as when leaving the factory.
