Invar Tube ASTM F 1684 Controlled Expansion Alloy Low Thermal Expansion Alloy

Place of Origin China
Brand Name XUNSHI
Certification ISO 9001:2015
Model Number Invar
Minimum Order Quantity 20 kg
Price Negotiable
Packaging Details Plywood crate
Delivery Time 60 days
Payment Terms T/T
Supply Ability 100 kg per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Equal Grades Invar 36, NILO 36, Pernifer 36, 4J36, EN 1.3912, UNS K93600, UNS K93603, Werkstoff 1.3912 Spec ASTM F1684
Material FeNi Alloy Forms Of Supply Sheet, Strip, Wire, Rod, Bar, Tube, Capillary
Size Rang O.D. Φ0.2~Φ8mm
High Light

ASTM F1684 invar tube


FeNi alloy invar tube


8mm invar tube

Leave a Message
Product Description

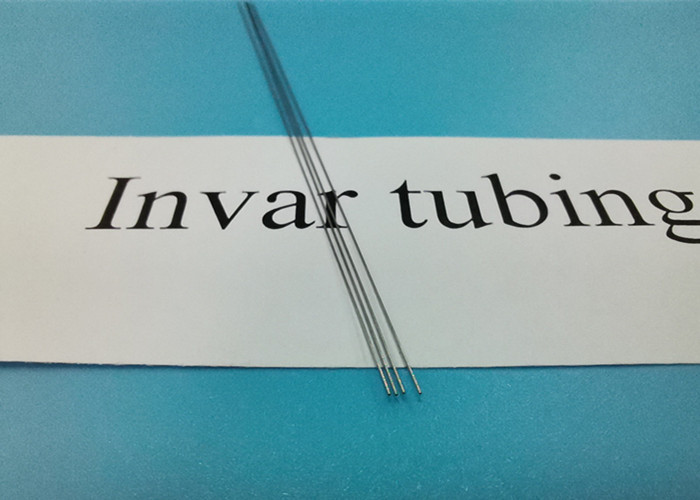

Size range of Invar tubing

Dimension: O.D.: Φ0.2~Φ8mm, wall thickness 0.015~0.5mm.
Tolerance: O.D.: Φ±0.003mm, wall thickness T±0.005mm, length L±0.05mm.


Invar is a low expansion alloy consisting of 36% Nickel, balance Iron. Invar Alloy exhibits extremely low expansion around ambient temperatures, making Invar Alloy particularly useful in applications where minimum thermal expansion and high dimensional stability is required, such as in precision instruments like optoelectronic devices, optical and laser benches, electronics, and other kinds of scientific instruments.

Low expansion rate up to 500°F
Readily weldable

Cathode Ray Tubes
Other application areas, such as telecommunications, aeronautical and aerospace engineering, cryogenic engineering (liquefied natural gas tankers) etc., require either high dimensional stability with variation in temperature, or expansion characteristics matched with those of other materials, such as glass, ceramics, or composites.

Equal grades

  • Invar 36
  • NILO 36
  • Pernifer 36
  • 4J36
  • EN 1.3912
  • UNS K93600
  • UNS K93603
  • Werkstoff 1.3912

Chemical composition
Ni=35.0~37.0, Fe=Remainder, Mo≤0.50, C≤0.1, Cu≤0.5, Mn≤0.60, Si≤0.35, P≤0.025, S≤0.025, Cr≤0.5

ASTM F 1684-06

Forms available at XUNSHI
Sheet, strip, wire, rod, bar, tube, capillary
Invar Tube ASTM F 1684 Controlled Expansion Alloy Low Thermal Expansion Alloy 0Invar Tube ASTM F 1684 Controlled Expansion Alloy Low Thermal Expansion Alloy 1Invar Tube ASTM F 1684 Controlled Expansion Alloy Low Thermal Expansion Alloy 2Invar Tube ASTM F 1684 Controlled Expansion Alloy Low Thermal Expansion Alloy 3Invar Tube ASTM F 1684 Controlled Expansion Alloy Low Thermal Expansion Alloy 4
