Inconel 718 plus UNS N07818 Precipitation Hardened Nickel-base Superalloy

Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xUNS No. | N07818 | Equal Name | ATI 718Plus, Allvac 718Plus |
---|---|---|---|
Spec | AMS 5441, AMS 5442 | Avialable Forms | Ingot, Billet, Block, Forged Round Bar, Hot-rolled Shapes And Rectangles, Bar, Rod, Wire, Plate, Sheet, Strip, And Castings. |
Density | 8.25g/cm | ||
Highlight | N07818 nickel superalloy,AMS 5442 nickel superalloy,nickel base superalloy |
Inconel 718Plus alloy (UNS N07818) is a precipitation hardened nickel-base material that exhibits high temperature tensile strength and stress rupture performance. This alloy is designed to have the high temperature capability and thermal stability of Waspaloy alloy while retaining the processing characteristics of 718 alloy. It is double vacuum melted (VIM/ESR/VAR). This VIM/VAR process ensures excellent microcleanliness and tight compositional control. Triple melting, with electroslag remelting between the VIM and VAR operations, minimizes the possibility of macrosegregation, increases microcleanliness, and is preferred for premium quality jet engine rotating component applications. Inconel 718Plus alloy has at least a 100°F (55°C) operating temperature advantage over 718 alloy. 718Plus alloy also has advantages over Waspaloy and other higher temperature capable, nickel-base alloys due to its higher strength, superior formability, better wear resistance, and a resistance to weld cracking. 718Plus alloy is a lower cost option than Waspaloy or Rene 41 alloy due to its lower intrinsic raw materials cost and improved hot workability which provides higher material yields, resulting in a lower cost finished part.
Chemical composition
Element | C | Mn | Si | P | S | Cr | Ni | Mo | Nb | Ti | Al | Co | W | B | Cu | Pb | Bi | Se | Fe |
Weight(%) | 0.01-0.05 | 0.35 max | 0.35 max | 0.004-0.020 | 0.0025 max | 17.00-21.00 | Rem | 2.50-3.10 | 5.20-5.80 | 0.50-1.00 | 1.20-1.70 | 8.00-10.00 | 0.80-1.40 | 0.003-0.008 | 0.30 max | 0.0005 max | 0.00003 max | 0.0003 max | 8.00-10.00 |
Hardness
HRC 25 - 35(solution heat treated depending on quench rate)
HRC 42 - 48(fully aged condition)
Tensile Strength, Ultimate 1480 MPa
Application
These products have been typically used for parts requiring high resistance to creep and stress rupture up to 1400°F(760°C) and oxidation resistance up to 1800°F(982°C), but usage is not limited to such applications.
Available forms

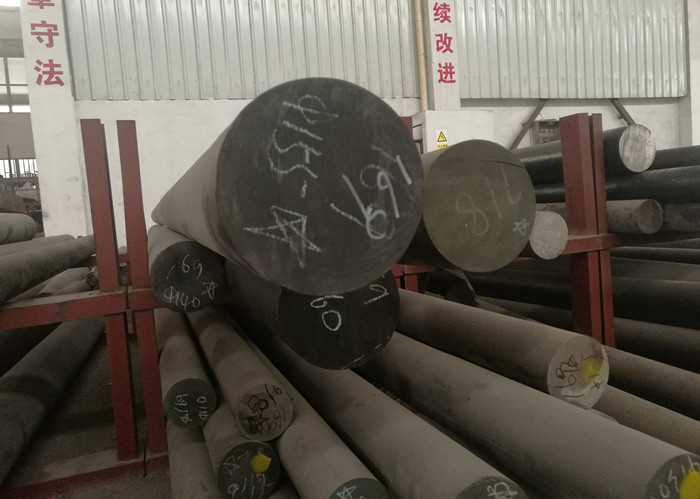

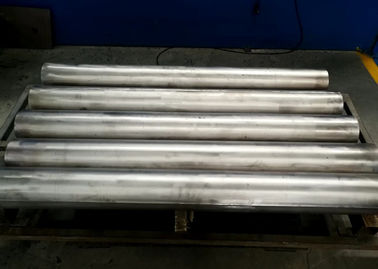

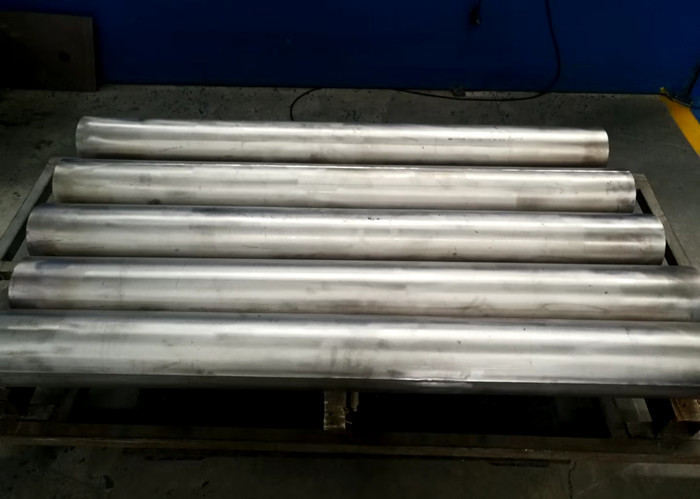

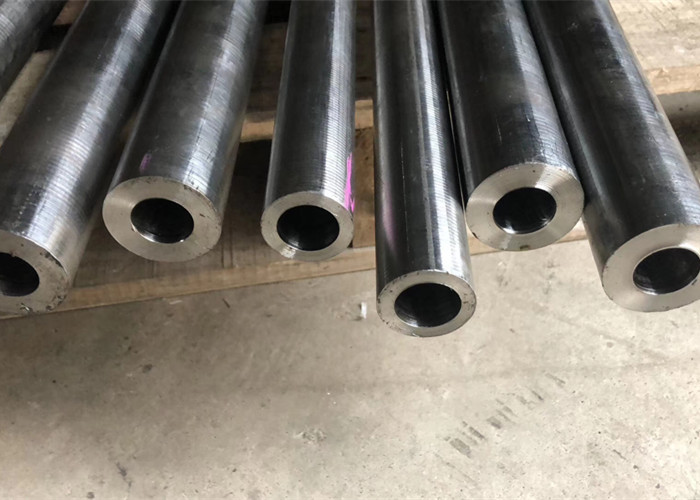

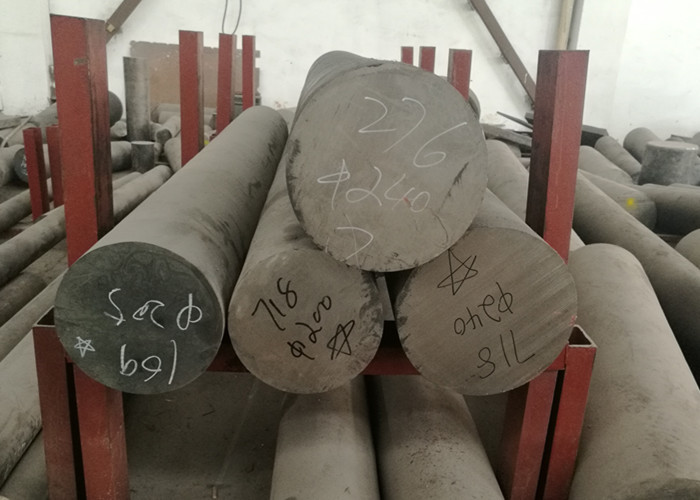

718Plus alloy is available in all product forms: ingot, billet, block, forged round bar, hot-rolled shapes and rectangles, bar, rod, wire, plate, sheet, strip, and castings.
