Iron Nickel Low Expansion Alloy 4J36 Strip Wire YB/T 5241-1993 Curie Point 230°C

Iron Nickel Low Expansion Alloy 4J36  Strip Wire YB/T 5241-1993 Curie Point 230°C
Iron Nickel Low Expansion Alloy 4J36  Strip Wire YB/T 5241-1993 Curie Point 230°C Iron Nickel Low Expansion Alloy 4J36  Strip Wire YB/T 5241-1993 Curie Point 230°C

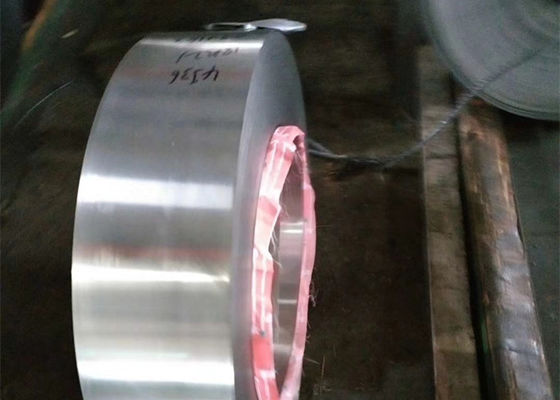

Large Image :  Iron Nickel Low Expansion Alloy 4J36 Strip Wire YB/T 5241-1993 Curie Point 230°C

Product Details:

Place of Origin: China
Brand Name: AIWEN
Certification: ISO9001
Model Number: 4J36

Payment & Shipping Terms:

Minimum Order Quantity: 50kg
Price: Negotiable
Packaging Details: Plywood case
Delivery Time: 30-35 days
Payment Terms: T/T
Supply Ability: 5000kg per week
Detailed Product Description
Equal Grade: Invar36, Nilo36 Forms Of Supply: Wire, Bar, Forging, Strip, Plate, Pipe, Tube, Capillary
Sepc: YB/T 5241-1993 Curie Point: 230°C
Product Name: Low Expansion Alloy Certification: ISO9001
High Light:

iron nickel alloy

,

corrosion resistant alloys

4J36 Low Expansion Iron-Nickel Alloy Strip Wire YB/T 5241-1993





4J36 is well known as Invar 36 worldwide. It is a low expansion alloy with Curie point of around 230°C. When the temperature is below this point, 4J36 is magnetic and the expansion rate is very low. And when the temperature goes above this point, it becomes non-magnetic and the expansion rate goes bigger. 4J36  particularly useful in applications where minimum thermal expansion and high dimensional stability is required, such as in precision instruments like optoelectronic devices, optical and laser benches, electronics, and other kinds of scientific



Chemical composition

Element C P S Si Mn Ni Fe
Weight(%) 0.05 max 0.020 max 0.020 max 0.03 max 0.2~0.6 35.0~37.0 Rem



Character

  •  Low expansion rate up to 500°F
  •  Readily weldable



Application

  •  Cathode Ray Tubes
  •  Telecommunications
  •  Aeronautical and aerospace engineering
  •  Cryogenic engineering (liquefied natural gas tankers)
