Nilo 36 Low Expansion Alloy 4J36 Bar Strip Wire Readily Weldable

Place of Origin China
Brand Name XUNSHI
Certification ISO9001
Model Number 4J36
Minimum Order Quantity 50kg
Price Negotiable
Packaging Details Plywood case
Delivery Time 30-35 days
Payment Terms T/T
Supply Ability 5000kg per week
Product Details
Equal Grade Invar36, Nilo36,Pernifer 36, EN 1.3912, UNS K93600 Forms Of Supply Wire, Bar, Forging, Strip, Plate, Pipe, Tube, Capillary
Sepc YB/T 5241-1993 Curie Point 230°C
Product Name Low Expansion Alloy Certification ISO9001
High Light

Nilo 36 Low Expansion Alloy

,

Readily Weldable Controlled Expansion Alloys

,

4J36 Controlled Expansion Alloys

Leave a Message
Product Description

Nilo36 Low Expansion Alloy 4J36 Bar Strip Wire Readily Weldable



4J36 is well known as Invar 36 worldwide. It is a low expansion alloy with Curie point of around 230°C. When the temperature is below this point, 4J36 is magnetic and the expansion rate is very low. And when the temperature goes above this point, it becomes non-magnetic and the expansion rate goes bigger.



Chemical composition

Element C P S Si Mn Ni Fe
Weight(%) 0.05 max 0.020 max 0.020 max 0.03 max 0.2~0.6 35.0~37.0 Rem



Equal grades

Invar36, NILO 36, Pernifer 36, EN 1.3912, UNS K93600



Line expansion coefficient:

Standard:α1(20-100°C)≤1.5x10-6/°C



Physical performance:

Density:8.1g/cm3

Resresistivity:0.78μΩ·m

Curie temperature:230°C



Characters

Low expansions

Readily weldable

Corrosion resistance in the atmosphere, fresh water and sea water

Good hot and cold processing performance

Good abrasive performance



Application

Cathode Ray Tubes

Telecommunications

Aeronautical and aerospace engineering

Cryogenic engineering (liquefied natural gas tankers)



Available forms

Wire, bar, forging, strip, plate, pipe, tube, capillary

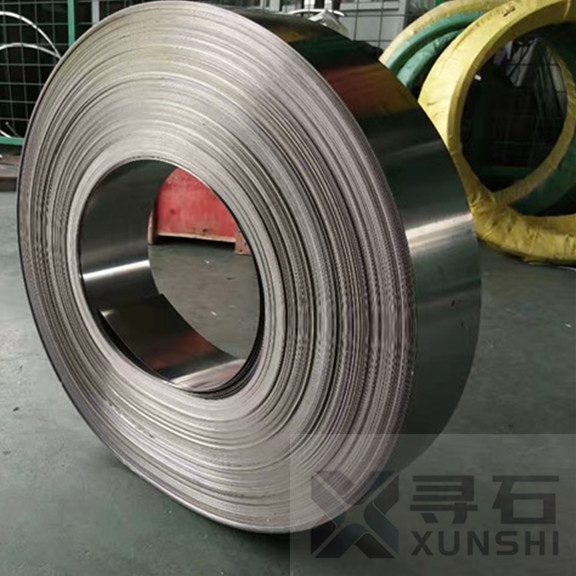

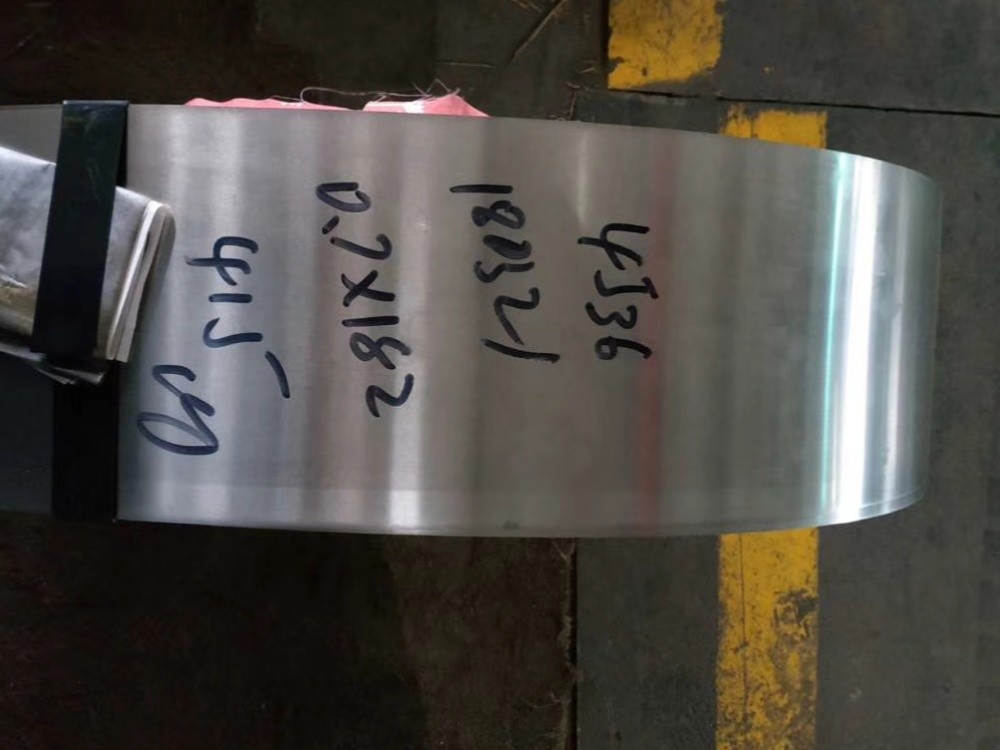

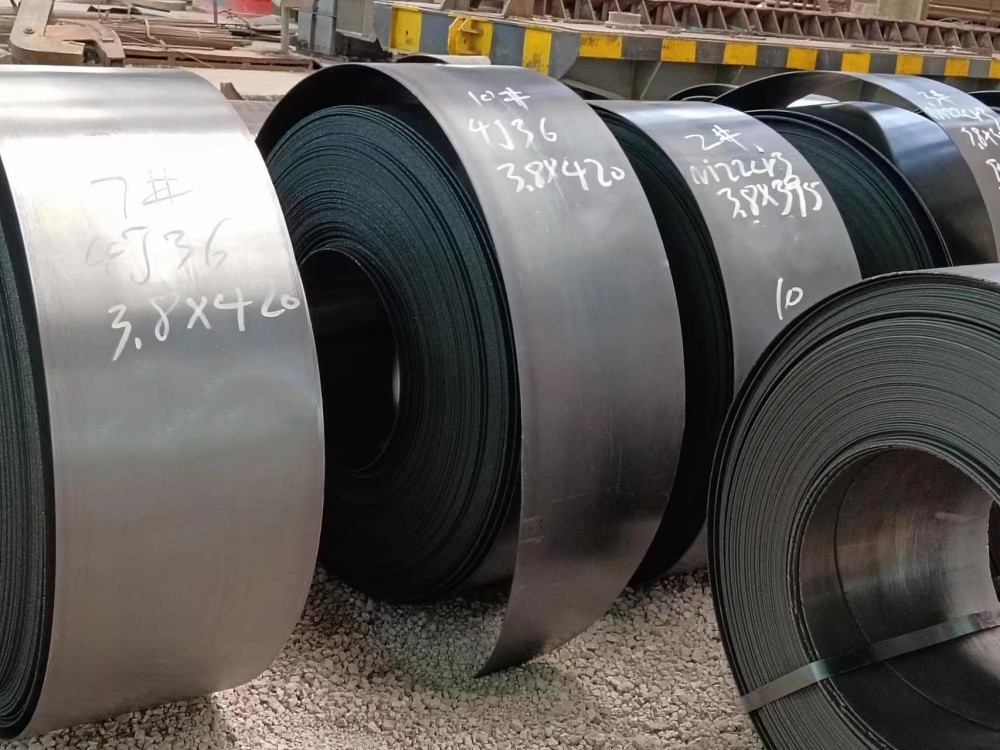

Nilo 36 Low Expansion Alloy 4J36 Bar Strip Wire Readily Weldable 0Nilo 36 Low Expansion Alloy 4J36 Bar Strip Wire Readily Weldable 1Nilo 36 Low Expansion Alloy 4J36 Bar Strip Wire Readily Weldable 2
