ASTM F138 Surgical Grade UNS S31673 Stainless Steel for Surgical Implants

Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xEqual Grades | UNS S31673, 316LVM, DIN 1.4441 | Application | Surgical Implants |
---|---|---|---|
Forms Of Supply | Wire, Bar, Rod | Specification | ASTM F 138, ISO 5832-1 |
Product Name | Special Stainless Steel | Model | UNS S3167 |
Highlight | UNS S31673 Stainless Steel,High Strength UNS S31673,ASTM F138 Surgical Grade Stainless Steel |

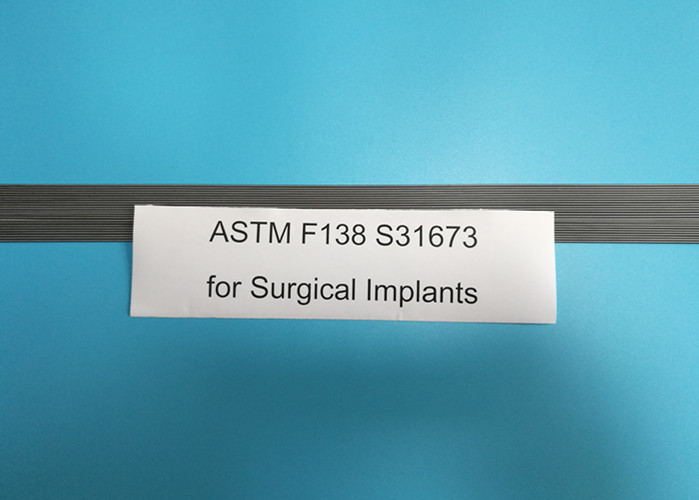

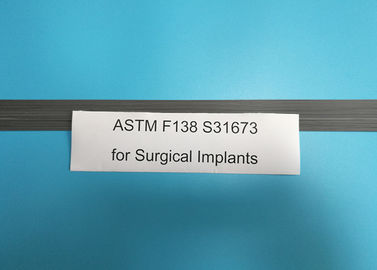

ASTM F138 UNS S31673 Stainless Steel for Surgical Implants
Suzhou XUNSHI New Material Co Ltd provides cost-effective Stainless Steel UNS S31673 for surgical implants for domestic and foreign customers, and the stainless steel UNS S31673 can be produced in accordance with the national standard 4234.1-2017,American standard ASTM F138 or ISO5832-1 and other relevant specifications.

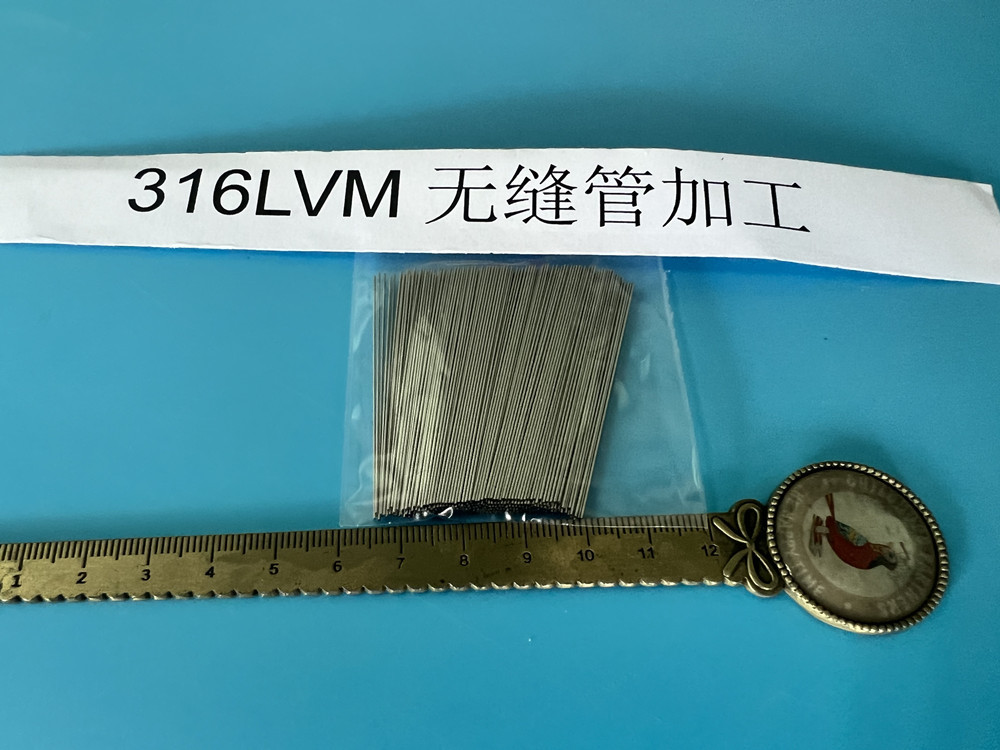

316LVM(low carbo, vacuum melted), is an electro-slag remelted (ESR) or vacuum arc remelted (VAR), low carbon, high nickel and molybdenum version of 316 stainless, which is considered to be a reasonable choice for surgical implants.
The chemical requirements for surgical implant UNS S31673 stainless steel are documented in ASTM F 138 and ISO 5832-1 specifications. A similar analysis of stainless steel is also available as ASTM A276 commercial quality alloy with different composition limits and microstructure features when compared to implant quality.
Comparison Between Implant Quality and Commercial Quality Stainless Steel(wt%)
Implant Quality | Commercial Quality | ||
Element | ASTM F 138 | ISO 5832-1 | ASTM A 276 |
C | 0.030 | 0.030 | 0.030 |
Mn | 2.00 | 2.0 | 2.00 |
P | 0.025 | 0.025 | 0.045 |
S | 0.010 | 0.010 | 0.030 |
Si | 0.75 | 1.0 | 1.00 |
Cr | 17.00-19.00B | 17.0-19.0B | 16.00-18.00 |
Ni | 13.00-15.00 | 13.0-15.0 | 10.00-14.00 |
Mo | 2.25-3.00B | 2.25-3.5B | 2.00-3.00 |
N | 0.10 | 0.10 | 0.10 |
Cu | 0.50 | 0.50 | — |
Fe | Balance | Balance | (Balance) |
Tensile Properties of Implant Quality ASTM F 138 Bar and Wire and ISO 5832-1 Bar
Diameter or Thickness | Ultimate Tensile Strength | Minimum 0.2% Yield Strength | Minimum Elongation in 4D or 4WA | ||
Standard | Condition | (mm) | (MPa) | (MPa) | (%) |
ASTM F 138 | Annealed | ≥ 1.60 | min 490 | 190 | 40 |
ISO 5832-1 | Annealed | All | 490– 690 | 190 | 40 |
ASTM F 138 | Cold Worked | 1.60– 38.1 | min 860 | 690 | 12 |
ISO 5832-1 | Cold Worked | ≤ 22 | 860–1100 | 690 | 12 |
ASTM F 138 | Extra Hard | 1.60– 6.35 | min 1350 | — | — |
ISO 5832-1 | Extra Hard | ≤ 8 | min 1400 | — | — |
Applications of UNS S31673
- Fracture Fixation Devices
- Bone Plates
- Screws
- Intramedullary Nails
- Surgical Implant Devices
- Surgical Instruments
- Body piercing jewelry
Characteristics of UNS S31673
- High Strength
- High fatigue strength
- Excellent Micro-cleanliness
- High surface finish
- Good consistency
Forms available at XUNSHI

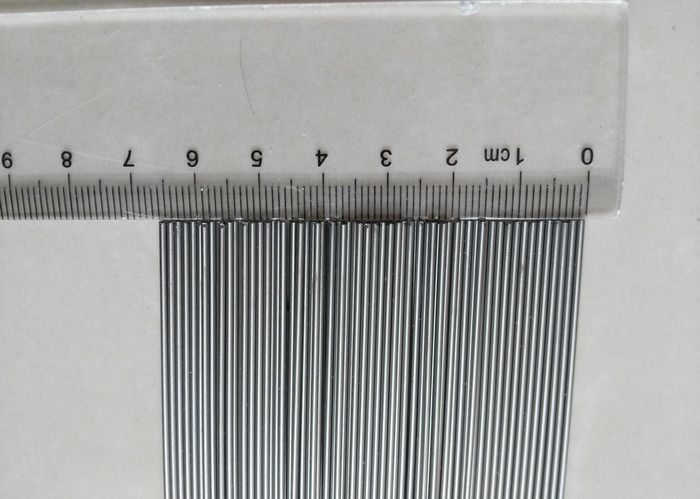

- Wire
- Bar

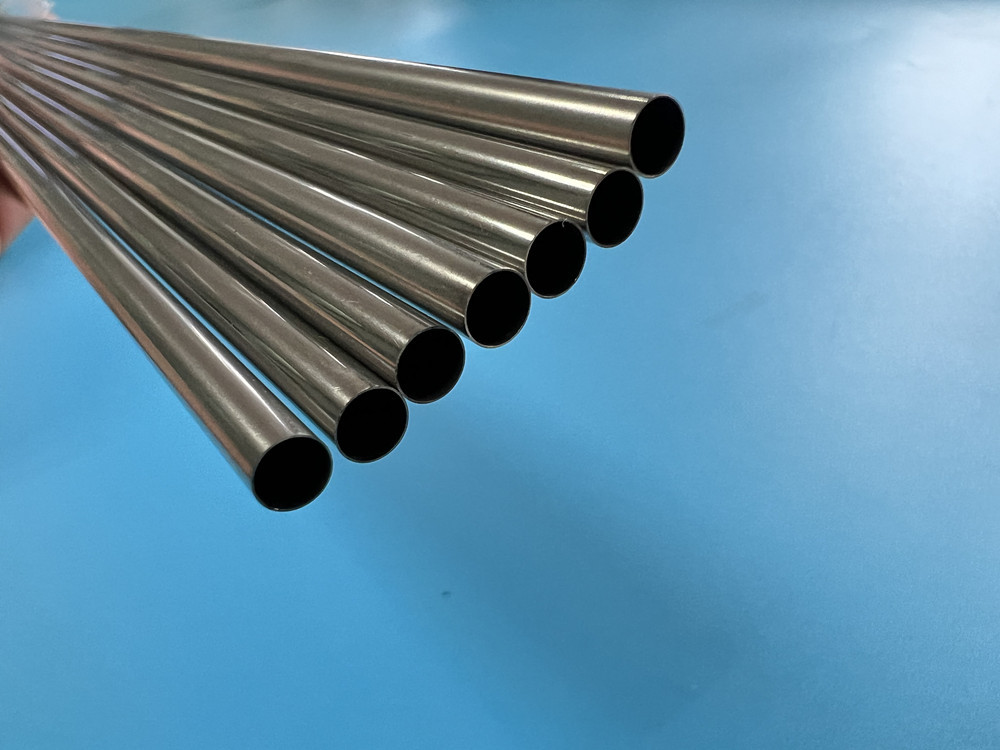

- Tube
- Pipe
- Strip
