FeNi Alloy Waveguide Magnetostrictive Wire For Level Probe 0.50mm Industrial

Place of Origin China
Brand Name XUNSHI
Certification Rohs
Model Number BDS-050
Minimum Order Quantity 100 meters
Price USD 1.25~1.60 per meter
Packaging Details Carton
Delivery Time 3-5 working days
Payment Terms T/T, Paypal, , Western Union
Supply Ability 10000 meters per weeks

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Composition FeNi Alloy Size Available 0.40-1.20mm
Stock Size 0.50mm, 0.75mm, 0.80mm Delivery Status In Coil, Straight Wire
Working Temperature -40~85℃ Product Name Magnetostrictive Material
High Light

rare earth materials

,

solid state materials

,

Waveguide Magnetostrictive Wire

Leave a Message
Product Description

Magnetostrictive Waveguide Wire for Level Probe Diameter 0.50mm China Supplier





XUNSHI is one of the most important magnetostrictive waveguide wire supplier in China. XUNSHI has rich experience of supplying Magnetostrictive waveguide wire to customers from worldwide. Our wire is widely used in Magnetostrictive level gauge/sensor/probe. We keep stock of magnetostrictive alloy wire of diameter 0.50mm/0.75mm/0.80mm/1.00mm.

Magnetostriction is a property of ferromagnetic materials such as iron, nickel, and cobalt. When placed in a magnetic field, these materials change size and/or shape.

An important characteristic of a wire made of a magnetostrictive material is the Wiedemann effect. When an axial magnetic field is applied to a magnetostrictive wire, and a current is passed through the wire, a twisting occurs at the location of the axial magnetic field. The twisting is caused by interaction of the axial magnetic field, usually from a permanent magnet, with the magnetic field along the magnetostrictive wire, which is present due to the current in the wire.

The current is applied as a short-duration pulse, -1 or 2 µs; the minimum current density is along the center of the wire and the maximum at the wire surface. This is due to the skin effect.

The magnetic field intensity is also greatest at the wire surface. This aids in developing the waveguide twist. Since the current is applied as a pulse, the mechanical twisting travels in the wire as an ultrasonic wave. The magnetostrictive wire is therefore called the waveguide.



During the communication with customers  XUNSHI learnt that straight wire is more convenient for the assemble and the signal is better as well. After years' experiment, XUNSHI sucessfully produced straight magnetostrictive waveguide wire. Several customers tested the sample and the result is really good.



Diameter(mm) Stock amont(meters) Note
0.50 100,000 Straight wire in stock
0.75 20,000 Straight wire available on request
0.80 12,500 Straight wire available on request
1.00 5000 Straight wire available on request



Packing:

The wire will be packed in carton with bubble bag protection. The wire is packed in coil after being straightened for easy transport. When you release the coil, the wire becomes straight.

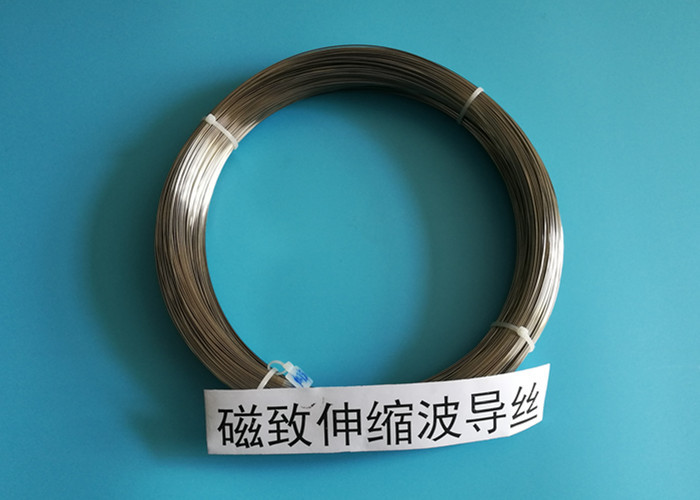

FeNi Alloy Waveguide Magnetostrictive Wire For Level Probe 0.50mm Industrial 0FeNi Alloy Waveguide Magnetostrictive Wire For Level Probe 0.50mm Industrial 1

FeNi Alloy Waveguide Magnetostrictive Wire For Level Probe 0.50mm Industrial 2
