3J21 Superelastic Alloy Phynox For Elastic Wire Strip Rod Forging

large.img.alt
small.img.alt

Large Image :  3J21 Superelastic Alloy Phynox For Elastic Wire Strip Rod Forging

Product Details:
Place of Origin: China
Brand Name: XUNSHI
Certification: ISO 9001
Model Number: 3J21 Phynox
Payment & Shipping Terms:
Minimum Order Quantity: 20kg
Price: Available per request
Packaging Details: Playwoode case
Delivery Time: 45-60 days
Payment Terms: T/T, Western Union
Supply Ability: 500 kg per month
Detailed Product Description
Equal Grades: UNS R30003, Phynox, W.Nr 2.4711 Forms Of Supply: Strip, Wire, Round Bar, Forging
Spec: YB/T 5253-2011 UNS No.: R30003
Product Name: Superelastic Alloy Package: Playwoode Case
High Light:

Superelastic Alloy High Strength

,

Superelastic Alloy 3J21

,

Phynox Superelastic Alloy

3J21 Superelastic Alloy Phynox For Elastic Component Wire Strip Rod Forging

3J21 High strength Superelastic Alloy Phynox For Elastic Component Wire Strip Rod



XUNSHI NEW MATERIALS CO LTED supplies 3J21 alloy for elastic components.



3J21 is a Co-Cr-Ni-Mo high-elastic alloy, which belongs to a deformation reinforced cobalt-based alloy, with good plastic properties and easy to process in the solid solution state. After high strain rate cold processing and time limit treatment, 3J21 can obtain high mechanical and elastic properties,but after the solid solution treatment, the alloy can no longer be strengthened by time limit treatment.



Successful project: Spring energized seal-Italian customer

The customer used Phynox strip from France in the past. After 6 months' strict test in the lab, our 3J21 strip is commented as excellent in performance.



Characters

Combination of high strength, ductility and good mechanical properties at ambient temperatures

Excellent fatigue life

Excellent corrosion resistance in numerous environments

Non magnetic

 Age hardenable (Spring Temper only)



Good for sea water applications



Application

3J21 is mainly used for elastic element for aviation required wear resistance, corrosion resistance, seismic, no magnetic, thin wire, strip, spring, and film elements below 400℃, but also for making special bearings with highcorrosion resistance and non magnetic, and 3j21 also used for making small shaft, ball, stamping mold and blade tools.



The Equal grades

R30003,Phynox(Francce),Elgiloy*,



The available forms

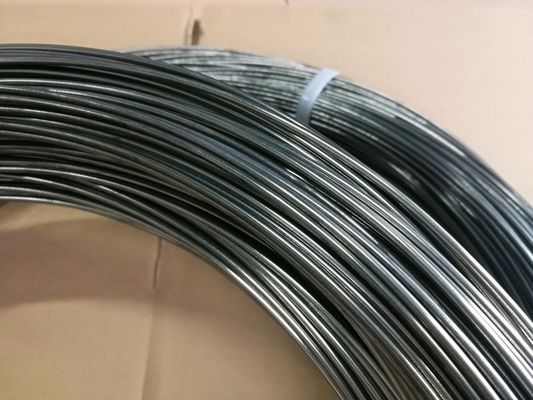

Usually, 3J21 is supplied in cold rolled strip and cold pulled wire form, and also can be provided upon customer request in rods and forgings

Wire: 0.10-6.0mm

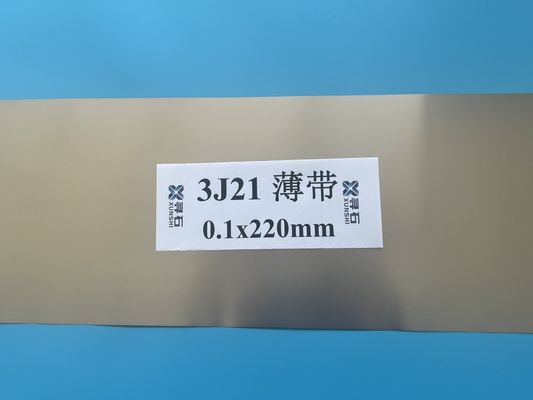

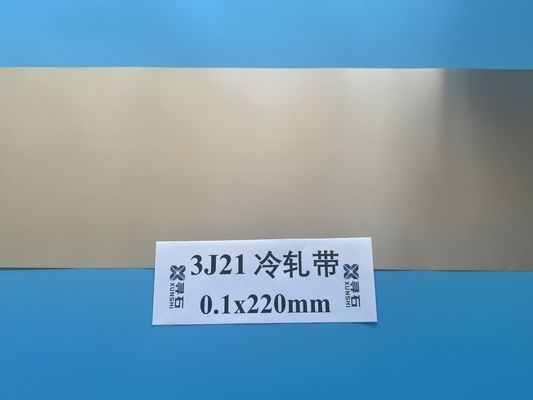

Strip: 0.05-2.0mm

Rod diameter 20-100mm

The leading time for wires and rods is around 30days.
