1J85 Iron Nickel Soft Magnetic Alloy Hot Rolled Rod China Origin ASTM A 753 Alloy 4

Place of Origin China
Brand Name XUNSHI
Certification ISO9001:2015
Model Number 1J85
Minimum Order Quantity 30 kg
Price Negotiable
Packaging Details Plywood case
Delivery Time 30-35 days
Payment Terms T/T
Supply Ability 5000kg per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Iron-nickel Soft Magnetic Alloy Equal Grade 1J85, HYMU80,
Forms Of Supply Cold Rolled Strip, Hot Rolled Plate, Hot Rolled Rod, Spec ASTM- A- 753, Alloy 4
High Light

Iron Nickel Soft Magnetic Alloys

,

Hot Rolled Rod Soft Magnetic Alloy

,

Soft Magnetic Alloys 1J85

Leave a Message
Product Description

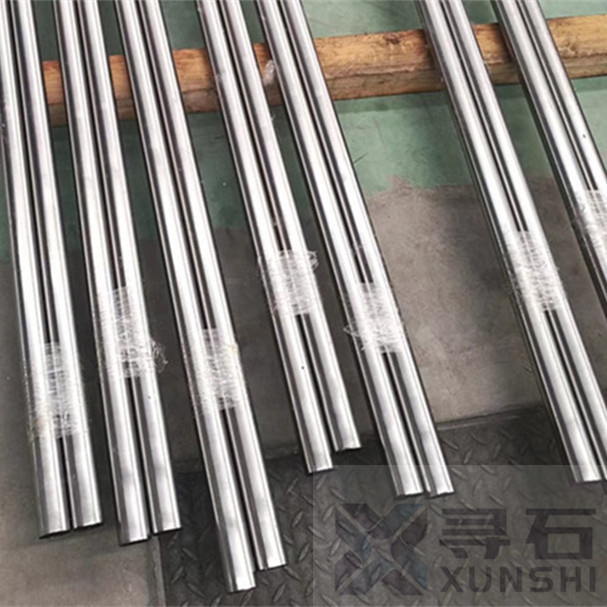

1J85 Iron-Nickel Soft Magnetic Alloy Hot Rolled Rod



Iron-nickel soft magnetic alloy is the most widely used, the most variety and specifications of soft magnetic alloys, the dosage is second only to silicon steel sheet and electrical pure iron.

1J85 has high initial permeability and high saturation permeability and low coercive force in low-intensity magnetic field.

1J85 Iron-nickel alloy is generally smelting by vacuum and cast into steel ingot.Hot forged into slabs, then after pickling, refined, rolled into strips, or forged into rods.The general supply forms are cold rolled strip, hot rolled board, hot rolled rod,hot forging rod, cold pulled wire, cold pulled pipe, capillary, etc.Other non-standard specifications can also be supplied through negotiation.We can also process components and provide heat treatment services according to customer drawings or specifications.



Chemical compositions

Grade Chemical elements
C S P Mn Si Ni Mo Cu Fe
1J85 ≤0.03 ≤0.02 ≤0.02 0.3~0.60 0.15~0.3 79.0~81 4.8~5.2 ≤0.2 belance


Magnetic performance

Grade forms quality level



Thickness or diameter

(mm)

In 0.4A/m Magnetic conductivity

μ0.4

In 0.08A/m Magnetic conductivity

μ0.08

Magnetic conductivityμm

(MAX)

Coercivity HC Saturated magnetic induction strength Bs
  A/m T
not less than not greater than
1J85 Cold rolled strip 0.1-0.19   37.5 187.5 1.6 0.7
0.2-0.34   50 225 1.2 0.7
0.35-1.0   62.5 312.5 0.8 0.7
1.1-2.5   50 187.5 1.2 0.7
0.1-0.19   62.5 225 1.2 0.7
0.2-0.34   75 250 1.0 0.7
0.35   68.8 325 0.7 0.7
hot rolled plate   3-22   37.5 125 1.6 0.7
hot rolled rod   8-100   37.5 125 1.6 0.7
Features
  • Extremely high initial permeability
  • Maximum permeability
  • Minimum hysteresis loss

Applications
  • Transformer cores
  • Tape wound toroids
  • Laminations
  • Shielding






As a professional high-performance alloys supplier in China, we have very rich experience of supplying 1J85 soft magnetic alloy in forms of strip, wire, round bar and so on. Our customers are from worldwide and they trust us after the cooperation for years.

1J85 Iron Nickel Soft Magnetic Alloy Hot Rolled Rod China Origin ASTM A 753 Alloy 4 01J85 Iron Nickel Soft Magnetic Alloy Hot Rolled Rod China Origin ASTM A 753 Alloy 4 1

1J85 Iron Nickel Soft Magnetic Alloy Hot Rolled Rod China Origin ASTM A 753 Alloy 4 21J85 Iron Nickel Soft Magnetic Alloy Hot Rolled Rod China Origin ASTM A 753 Alloy 4 3
