Fe83Ga17 Galfenol Magnetostrictive Material Wire Magnetostriction up to 200PPM

Place of Origin China
Brand Name AIWEN
Certification ISO9001
Model Number Galfenol
Minimum Order Quantity 50 meters
Price Negotiable
Packaging Details Carton
Delivery Time 50~60 days
Payment Terms T/T
Supply Ability 1000 meters per month
Product Details
Material Fe83Ga17 Size Range Diameter 0.50~3.0mm
Equal Grades Galfenol Forms Of Supply Wire, Rod, Plate
High Light

rare earth metals

,

solid state materials

,

Magnetostrictive Material 200PPM

Leave a Message
Product Description

Fe83Ga17 Alloy(Galfenol) is a magnetostrictive alloy comprised primarily of the elements iron (Fe) and gallium (Ga).

It was hypothesized that other magnetostrictive alloys had to exist that combined the mechanical robustness of Ni and the giant magnetostrictive response of Terfenol-D.

Galfenol exhibits a unique combination of mechanical and magnetostrictive (magnetic) properties that legacy smart materials do not.

Composition: Fe83Ga17

Magnetostriction λ, ppm(125~500 Oe, 12~36MPa): 180~300

Density(ρg), g/cm7.6

Curie Temperature(Tc), ℃: >760

Relative Permeability(μr): 32~180

Conductivity(ρ),10-6Ω·cm: 80

Tensile Strength(σb), MPa: >450

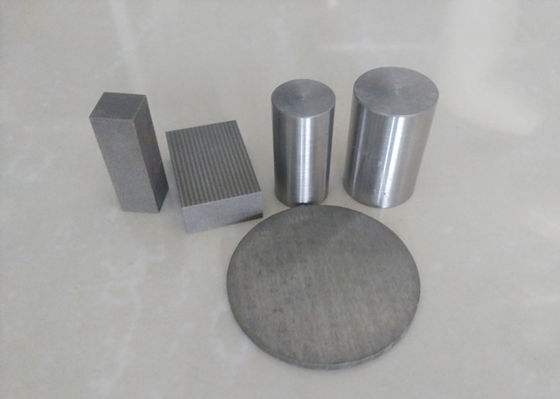

Product size range:

Bar: diameter φ6~25mm

Strip: thickness<1mm

Wire: diameter<φ3 mm(stock size: diameter 0.80mm)
