Shock Resistance Nickel Cobalt Alloy W.Nr. 2.4778 Rod Forging Tube

China Suzhou Xunshi New Material Co., Ltd certification
China Suzhou Xunshi New Material Co., Ltd certification
Have been business relationship for 3 years, great partner for Nickel Cobalt Alloy!

—— Daniel Weree

On-time delivery. And support is good and fast.

—— Carolina Fasio

I'm Online Chat Now

Shock Resistance Nickel Cobalt Alloy W.Nr. 2.4778 Rod Forging Tube

large.img.alt
small.img.alt

Large Image :  Shock Resistance Nickel Cobalt Alloy W.Nr. 2.4778 Rod Forging Tube

Product Details:
Place of Origin: China
Brand Name: XUNSHI
Certification: ISO9001:2015
Model Number: W.Nr. 2.4778
Payment & Shipping Terms:
Minimum Order Quantity: 100kg
Price: Negotiable
Packaging Details: Plywood case
Delivery Time: 30-35 days
Payment Terms: T/T
Supply Ability: 3000kg per month
Detailed Product Description
Equal Grades: W.Nr. 2.4778, UmCo50,Co50 Form Of Supply: Forging, Tube,rod,pipe
Diameter: 20-500mm Chemical Composition: 50Co-30Cr-20Fe
Product Name: Nickel Based Alloys Certification: ISO9001:2015
High Light:

Forging Tube Nickel Cobalt Alloy

,

Shock Resistance Nickel Cobalt Alloy

,

Shock Resistance Nickel Based Alloys

High Temperature Resistance Nickel Based Alloys W.Nr. 2.4778 Rod Forging Tube



W.Nr. 2.4778 is a heat-resistant cobalt alloy with excellent thermal shock resistance and wear resistance performance. We can supply W.Nr. 2.4778 in forms of Rods, forgings, seamless pipes, tube and so on.



Chemical Composition (%, EN 10295)

C 0.05-0.25
Si 0.50-1.50
Mn 1.5
P 0.04
S 0.03
Cr 27-30
Mo 0.50
Ni 4.0
Nb 0.50
Co 48-52
Fe Balance



Shock Resistances

Since thermal shock resistance was given first priority when developing W.Nr. 2.4778, this alloy shows far more outstanding thermal shock resistance than the popularly used 25Cr-20Ni stainless steel. For example, even after repeating the heating and cooling cycle (1000-water cooling-7 seconds) for 500 times, no cracking occurred. As a practical example, the alloy was used for four and a half years as a tray which was heated up to 1000 in a heavy oil furnace to quench various quenching agents. Hardly any cracking occurred in W.Nr. 2.4778, whereas the 25Cr-12Ni alloys were able to be used for only 8 months in average.

Wear Resistances

As for the wear resistance of W.Nr. 2.4778, hardly any deterioration was found after being used as a sintering bar for copper sulfide for 50 months. On the other hand, cast iron parts used till then were heavily corroded, oxidized and worn even though operations were conducted at 900, making them usable for only three and a half months.

Weldability

W.Nr. 2.4778 can be welded together by arc or oxy-acetylene methods. When higher wear resistance is required, weld additionally with BISHILITE (HARDFACING ALLOYS). When welding W.Nr. 2.4778 to stainless steel or steel, MA-W welding rod can be used.

Characteristics

High Temperature Resistance, Thermal Shock Resistance , Wear Resistance

Higher melting points than other cobalt based and nickel based alloys (1380 -1395 °C)

Corrosion resistant in Sparse sulfuric acid and boiling nitric acid and corrosion rapidly in hydrochloric acid

Equal grades

Thermco50, Co50, Umco50



XUNSHI has strong strength in production of the cobalt alloys,if you have any request,please feel free to contact us.

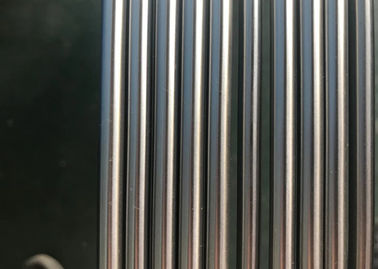

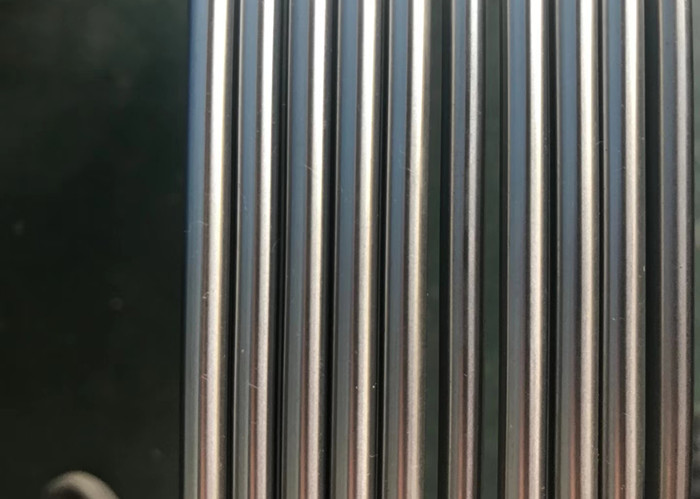

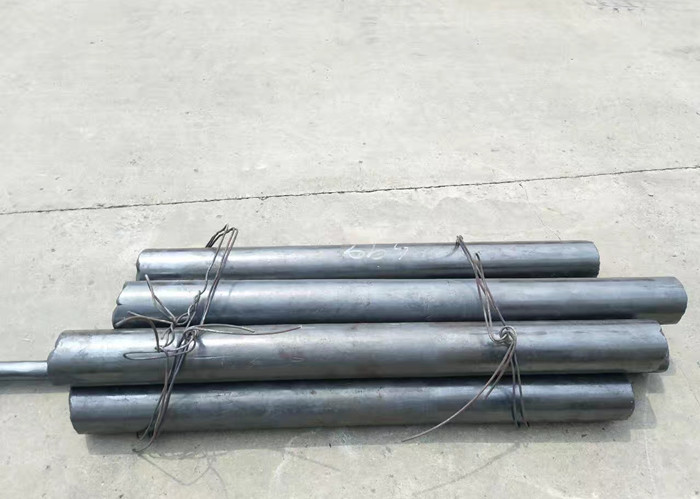

Shock Resistance Nickel Cobalt Alloy W.Nr. 2.4778 Rod Forging Tube 0Shock Resistance Nickel Cobalt Alloy W.Nr. 2.4778 Rod Forging Tube 1Shock Resistance Nickel Cobalt Alloy W.Nr. 2.4778 Rod Forging Tube 2
